Digital Oscilloscopes

Rigol has developed a complete line of digital oscilloscopes to help you achieve faster debugging and testing of your newest designs. Compare our powerful functions and compact designs to your current scope and you'll see we offer state-of-the-art technology. Compare the prices and you'll be surprised how much you can save.

    DS6000
    Array ( [SolutionNumber] => 00001454 [SolutionName] => DS6000 subtitle [SolutionNote] => [Type__c] => Subtitle [Intro_paragraph__c] => Advanced Analysis Oscilloscopes for Performance Applications.
    • 600 MHz - 1 GHz, 2 or 4 analog channels
    [Products_Related__c] => DS6 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kgzmIAA [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005G0000001qWFAIA2 [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-09-07 13:43:05 [CreatedDate] => 2016-09-07 23:45:53 [SystemModstamp] => 2017-09-08 10:39:35 [lastUpdate] => 2017-09-09 00:15:11 )
  • DS6000 Series

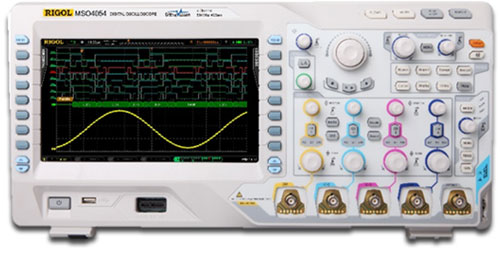

  • 4000
    Array ( [SolutionNumber] => 00001422 [SolutionName] => DS4000 Subtitle [SolutionNote] => Digital & mixed signal scopes for analyzing mainstream embedded R & D applications. 100 - 500 MHz, 2 or 4 analog channels and up to 16 digital channels [Type__c] => Subtitle [Intro_paragraph__c] => Digital & mixed signal scopes for analyzing mainstream embedded R & D applications.
    • 100 - 500 MHz, 2 or 4 analog channels and up to 16 digital channels --- up to 15% off for a limited time!
    [Products_Related__c] => MSO4000 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kgwsIAA [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-08-31 20:58:18 [CreatedDate] => 2016-09-07 18:43:47 [SystemModstamp] => 2017-09-02 10:39:40 [lastUpdate] => 2017-09-03 00:15:09 )
  • 4000 Series

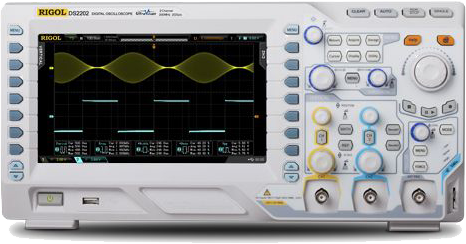

  • 2000
    Array ( [SolutionNumber] => 00001424 [SolutionName] => 2000 subtitle [SolutionNote] => Digital & mixed signal scopes for low speed embedded debug and serial data applications. 70 - 300 MHz, 2 analog channels and up to 16 digital channels [Type__c] => Subtitle [Intro_paragraph__c] => Digital & mixed signal scopes for low speed embedded debug and serial data applications
    • 70 - 300 MHz, 2 analog channels and up to 16 digital channels
    [Products_Related__c] => DS2000A Family;MSO2A Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kgx2IAA [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:56 [CreatedDate] => 2016-09-07 20:22:22 [SystemModstamp] => 2017-09-19 10:40:02 [lastUpdate] => 2017-09-19 08:15:07 )
  • 2000 Series

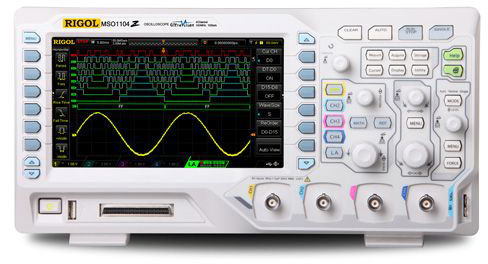

  • 1000Z
    Array ( [SolutionNumber] => 00001442 [SolutionName] => 1000Z subtitle [SolutionNote] => [Type__c] => Subtitle [Intro_paragraph__c] => Digital & mixed signal scopes for bench, education, and value embedded debug or serial data applications
    • 50 - 100 MHz, 4 analog channels and up to 16 digital channels
    [Products_Related__c] => DS1000Z Family;DS1000Z Plus Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kgyoIAA [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-09-06 15:30:41 [CreatedDate] => 2016-09-07 22:59:33 [SystemModstamp] => 2017-09-07 10:40:10 [lastUpdate] => 2017-09-07 09:43:20 )
  • 1000Z Series

  • 1000
    Array ( [SolutionNumber] => 00001464 [SolutionName] => 1000 series scopes [SolutionNote] => [Type__c] => Subtitle [Intro_paragraph__c] => Entry level digital oscilloscopes for hobbyist, education, and low speed industrial applications
    • 50-200 MHz, 2 or 4 analog channels and up to 16 digital channels
    [Products_Related__c] => DS1E/D Family;DS1B Family;DS1CA Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kh0aIAA [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000ECzEIAW [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000ECzEIAW [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:56 [CreatedDate] => 2016-09-08 00:17:08 [SystemModstamp] => 2017-07-18 21:52:56 [lastUpdate] => 2017-07-20 08:15:08 )
  • 1000 Series

Digital Oscilloscopes Configuration Table (sort by characteristic)

Selection Guide
Please scroll to the sides when using small displays
Model Analog Channels Digital Channels Bandwidth Waveform Capture Rate Max Memory Depth Price (CAD)
DS6104 4 1000 180,000 140000000 $12,578
DS6102 2 1000 180,000 140000000 $10,260
DS6064 4 600 180,000 140000000 $9,571
DS6062 2 600 180,000 140000000 $7,656
MSO4054 4 16 500 110,000 140000000 $10,238
MSO4052 2 16 500 110,000 140000000 $8,744
DS4054 4 500 110,000 140000000 $7,184
DS4052 2 500 110,000 140000000 $5,723
MSO4034 4 16 350 110,000 140000000 $7,526
MSO4032 2 16 350 110,000 140000000 $6,530
DS4034 4 350 110,000 140000000 $5,003
DS4032 2 350 110,000 140000000 $3,298
MSO2302A-S 2 16 300 50,000 14000000 $2,789
MSO2302A 2 16 300 50,000 14000000 $2,603
DS2302A-S 2 300 50,000 14000000 $2,603
DS2302A 2 300 50,000 14000000 $2,293
DS1302CA 2 300 2,000 10000 $1,854
MSO4024 4 16 200 110,000 140000000 $4,427
MSO4022 2 16 200 110,000 140000000 $4,052
MSO2202A-S 2 16 200 50,000 14000000 $2,244
MSO2202A 2 16 200 50,000 14000000 $2,107
DS4024E 4 200 60,000 140000000 $2,529
DS4024 4 200 110,000 140000000 $2,934
DS4022 2 200 110,000 140000000 $2,657
DS2202E 2 200 50,000 28000000 $1,051
DS2202A-S 2 200 50,000 14000000 $2,107
DS2202A 2 200 50,000 14000000 $1,661
DS1204B 4 200 400 16000 $1,438
DS1202CA 2 200 2,000 10000 $1,482
MSO4014 4 16 100 110,000 140000000 $3,828
MSO4012 2 16 100 110,000 140000000 $3,561
MSO2102A-S 2 16 100 50,000 14000000 $1,810
MSO2102A 2 16 100 50,000 14000000 $1,611
MSO1104Z-S 4 16 100 30,000 12000000 $1,239
MSO1104Z 4 16 100 30,000 12000000 $991
DS4014E 4 100 60,000 140000000 $2,002
DS4014 4 100 110,000 140000000 $2,425
DS4012 2 100 110,000 140000000 $2,107
DS2102E 2 100 50,000 28000000 $803
DS2102A-S 2 100 50,000 14000000 $1,611
DS2102A 2 100 50,000 14000000 $1,239
DS1104Z-S Plus 4 Upgradable 100 30,000 12000000 $1,078
DS1104Z-S 4 100 30,000 12000000 $1,004
DS1104Z Plus 4 Upgradable 100 30,000 12000000 $830
DS1104Z 4 100 30,000 12000000 $768
DS1104B 4 100 400 16000 $1,239
DS1102E 2 100 0 1000000 $495
DS1102D 2 16 100 0 1000000 $1,042
DS1102CA 2 100 2,000 10000 $1,172
MSO2072A-S 2 16 70 50,000 14000000 $1,698
MSO2072A 2 16 70 50,000 14000000 $1,537
MSO1074Z-S 4 16 70 30,000 12000000 $1,115
MSO1074Z 4 16 70 30,000 12000000 $867
DS2072A-S 2 70 50,000 14000000 $1,475
DS2072A 2 70 50,000 14000000 $1,041
DS1074Z-S Plus 4 Upgradable 70 30,000 12000000 $867
DS1074Z-S 4 70 30,000 12000000 $818
DS1074Z Plus 4 Upgradable 70 30,000 12000000 $644
DS1074Z 4 70 30,000 12000000 $582
DS1074B 4 70 400 16000 $979
DS1072CA 2 70 2,000 10000 $924
DS1054Z 4 50 30,000 12000000 $495
DS1052E 2 50 0 1000000 $430
DS1052D 2 16 50 0 1000000 $795

Interactive Selection Tool


Requirements:
Digital Oscilloscopes must meet the following criteria...

Bandwidth

Analog Channels

Min Vertical Sensitivity (mV/div)

Max Real-time Sample Rate (GSa/s)

Max Waveform Capture Rate (wfms/s)

Max Memory Depth (points)

Max Waveform Frames Recorded in a second

Price

Series

Series: 1000
50 MHz Digital Oscilloscope
$430
Series: 1000
100 MHz Digital Oscilloscope
$495
Series: 1000Z
50 MHz Digital Oscilloscope
$495
Series: 1000Z
70 MHz Digital Oscilloscope
$582
Series: 1000Z
70 MHz Digital Oscilloscope
$644
Series: 1000Z
100 MHz Digital Oscilloscope
$768
Series: 1000
50 MHz Mixed Signal Oscilloscope
$795
Series: 2000
100 MHz, 2 Channel Digital Oscilloscope
$803
Series: 1000Z
70 MHz Digital Oscilloscope
$818
Series: 1000Z
100 MHz Digital Oscilloscope
$830
Series: 1000Z
70 MHz Mixed Signal Oscilloscope
$867
Series: 1000Z
70 MHz Digital Oscilloscope
$867
Series: 1000
70 MHz Digital Oscilloscope
$924
Series: 1000
70 MHz Digital Oscilloscope
$979
Series: 1000Z
100 MHz Mixed Signal Oscilloscope
$991
Series: 1000Z
100 MHz Digital Oscilloscope
$1004
Series: 2000
70 MHz, 2 Channel Digital Oscilloscope
$1041
Series: 1000
100 MHz Mixed Signal Oscilloscope
$1042
Series: 2000
200 MHz, 2 Channel Digital Oscilloscope
$1051
Series: 1000Z
100 MHz Digital Oscilloscope
$1078
Series: 1000Z
70 MHz Mixed Signal Oscilloscope
$1115
Series: 1000
100 MHz Digital Oscilloscope
$1172
Series: 1000
100 MHz Digital Oscilloscope
$1239
Series: 2000
100 MHz, 2 Channel Digital Oscilloscope
$1239
Series: 1000Z
100 MHz Mixed Signal Oscilloscope
$1239
Series: 1000
200 MHz Digital Oscilloscope
$1438
Series: 2000
70 MHz, 2 Channel Digital Oscilloscope with integrated 2 channel source
$1475
Series: 1000
200 MHz Digital Oscilloscope
$1482
Series: 2000
70 MHz Mixed Signal Oscilloscope
$1537
Series: 2000
100 MHz, 2 Channel Digital Oscilloscope with integrated 2 channel source
$1611
Series: 2000
100 MHz Mixed Signal Oscilloscope
$1611
Series: 2000
200 MHz, 2 Channel Digital Oscilloscope
$1661
Series: 2000
70 MHz Mixed Signal Oscilloscope
$1698
Series: 2000
100 MHz Mixed Signal Oscilloscope
$1810
Series: 1000
300 MHz Digital Oscilloscope
$1854
Series: 4000
100 MHz Digital Oscilloscope
$2002
Series: 4000
100 MHz Digital Oscilloscope
$2107
Series: 2000
200 MHz, 2 Channel Digital Oscilloscope with integrated 2 channel source
$2107
Series: 2000
200 MHz Mixed Signal Oscilloscope
$2107
Series: 2000
200 MHz Mixed Signal Oscilloscope
$2244
Series: 2000
300 MHz, 2 Channel Digital Oscilloscope
$2293
Series: 4000
100 MHz Digital Oscilloscope
$2425
Series: 4000
200 MHz Digital Oscilloscope
$2529
Series: 2000
300 MHz, 2 Channel Digital Oscilloscope with integrated 2 channel source
$2603
Series: 2000
300 MHz Mixed Signal Oscilloscope
$2603
Series: 4000
200 MHz Digital Oscilloscope
$2657
Series: 2000
300 MHz Mixed Signal Oscilloscope
$2789
Series: 4000
200 MHz Digital Oscilloscope
$2934
Series: 4000
350 MHz Digital Oscilloscope
$3298
Series: 4000
100 MHz Mixed Signal Oscilloscope
$3561
Series: 4000
100 MHz Mixed Signal Oscilloscope
$3828
Series: 4000
200 MHz Mixed Signal Oscilloscope
$4052
Series: 4000
200 MHz Mixed Signal Oscilloscope
$4427
Series: 4000
350 MHz Digital Oscilloscope
$5003
Series: 4000
500 MHz Digital Oscilloscope
$5723
Series: 4000
350 MHz Mixed Signal Oscilloscope
$6530
Series: 4000
500 MHz Digital Oscilloscope
$7184
Series: 4000
350 MHz Mixed Signal Oscilloscope
$7526
Series: DS6000
600 MHz, 2 Channel Digital Oscilloscope
$7656
Series: 4000
500 MHz Mixed Signal Oscilloscope
$8744
Series: DS6000
600 MHz, 4 Channel Digital Oscilloscope
$9571
Series: 4000
500 MHz Mixed Signal Oscilloscope
$10238
Series: DS6000
1 GHz, 2 Channel Digital Oscilloscope
$10260
Series: DS6000
1 GHz, 4 Channel Digital Oscilloscope
$12578
