7000 Series   |

Performance Mixed Signal Oscilloscopes

7000
The 7000 Series Oscilloscopes combines best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 100 to 500 MHz models each with 4 analog channels, the 7000 Series brings innovative analysis and visualization capabilities to embedded design, power analysis, serial decode, and RF applications. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements. 7000 Series Oscilloscopes provide unprecedented value and innovation in our mainstream embedded platform.
Purchase any 7000 Series and get a free Bundle Option. 200 MHz and 350 MHz models also get a Bandwidth Upgrade Free.
7000 Series Datasheet & Specs Compare Rigol
Product Feature Customer Benefit
  10G Sa/s Max Sample Rate Visualize fine resolution and signal detail
Visualize fine resolution and signal detail   10 GSamples per second makes it possible to see short and transient signal artifacts on the highest speed embedded signals. Oversample 500 MHz signals at 20X to highlight small deviations or capture up to 200 milliseconds of data with 5X oversampling on 500 MHz for ultimate signal analysis flexibility.
  Long Record Length (100M std/500M opt) Find elusive problems in complex digital streams with long acquisitions at high sample rates
Find elusive problems in complex digital streams with long acquisitions at high sample rates   The 7000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The 7000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.
  7 instruments in 1 Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.   The MSO7000 Series include all 7 instruments in 1. Solve any of your embedded design challenges whether you need to emulate analog or digital communications, capture high speed signals, verify levels, decode serial communication, monitor parallel buses, or count pulses the MSO7000 makes it possible to quickly and easily move between instrument capabilities all from 1 integrated interface.
  600,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.   Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.
  Intensity Color graded display Observe and highlight signal anomalies even when obscured by other signals
Observe and highlight signal anomalies even when obscured by other signals   With RIGOL’s advanced color graded display engineers can visualize signal anomalies in an intensity color grading even when overlapping with other signals artifacts in the current trigger mode.
  Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs   The 7000 Series provides decoding on up to 4 serial buses simultaneously. The 7000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.
  Flexible user interface combining touch, mouse, knob/button, web, and remote control Interact with the instrument in the way that works best for you
Interact with the instrument in the way that works best for you   With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.
  Enhanced Color FFT Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals
Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals   The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

Product Details

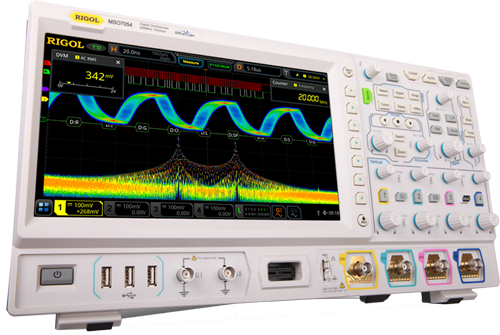

7000 with Callouts

Learn about Advanced Analysis Capabilities

Find out what makes this the World’s most powerful Mid-Range Oscilloscope
Learn More
Whitepapers
Debug & Analysis of IoT Power Requirements
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  7000 Series Datasheet & Specs

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsReal-time Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
DS7014 100 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $3,482 In Stock
DS7024 200 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $4,772 In Stock
DS7034 350 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $9,029 In Stock
DS7054 500 MHz4 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $12,899 In Stock
MSO7014 100 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $5,159 In Stock
MSO7024 200 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $6,449
MSO7034 350 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $10,706 In Stock
MSO7054 500 MHz4 16 10 GSa/s100 Mpts (500M opt)600,000 wfms/s $14,576
 Interactive Selection Tool

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 7000 scope family latest firmware

Drivers

Software

 UltraScope Remote Interface and Control SW UltraSigma Instrument Connectivity Driver UltraSigma Update for 7000
Please scroll to the sides when using small displays

Deep Memory

DS7000-2RL
7000 Series extend maximum memory depth up to 250 Mpts



$1,160

Active Probe

RP7080
Active, differential, 800 MHz probe for DS6000 or DS/MSO4000 Series Oscilloscopes



$2,708

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$2,311

Power Analysis Software

UPA-DS
Power Analysis Software for Oscilloscopes



$1,136

Please scroll to the sides when using small displays
4 Passive Probes

4 RP3500A 500 MHz Passive Probes for all models
FacePlate

Instrument Display Cover
RPL2316

Logic Probe for MSO2000A, MSO4000, and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips
Please scroll to the sides when using small displays

Deep Memory

DS7000-2RL
7000 Series extend maximum memory depth up to 250 Mpts



$1,160

Deep Memory

DS7000-5RL
7000 Series extend maximum memory depth up to 500 Mpts



$1,805

Serial Trigger & Decode

DS7000-AERO
7000 Series MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)



$1,160

Serial Trigger & Decode

DS7000-AUDIO
7000 Series Audio serial bus trigger and analysis (I2S)



$1,160

Serial Trigger & Decode

DS7000-AUTO
7000 Series Auto serial bus trigger and analysis (CAN, LIN)



$1,160

Option Bundle

DS7000-BND
7000 Series Function and application bundle option including PWR, AWG, and all Serial Decode options. AWG option only works on MSO models.



$2,579

Bandwidth Upgrade

DS7000-BW1T2
7000 Series Bandwidth upgrades from 100 MHz to 200 MHz



$1,341

Bandwidth Upgrade

DS7000-BW1T3
7000 Series Bandwidth upgrades from 100 MHz to 350 MHz



$5,675

Bandwidth Upgrade

DS7000-BW1T5
7000 Series Bandwidth upgrades from 100 MHz to 500 MHz



$9,545

Bandwidth Upgrade

DS7000-BW2T3
7000 Series Bandwidth upgrades from 200 MHz to 350 MHz



$4,385

Bandwidth Upgrade

DS7000-BW2T5
7000 Series Bandwidth upgrades from 200 MHz to 500 MHz



$8,255

Bandwidth Upgrade

DS7000-BW3T5
7000 Series Bandwidth upgrades from 350 MHz to 500 MHz



$3,998

Serial Trigger & Decode

DS7000-COMP
7000 Series PC serial bus trigger and analysis (RS232/UART)



$1,160

Serial Trigger & Decode

DS7000-EMBD
7000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$1,160

Serial Trigger & Decode

DS7000-FLEX
7000 Series FlexRay serial bus trigger and analysis (FlexRay)



$1,160

Power Analysis

DS7000-PWR
7000 Series Built-in power analysis Ripple and Power Quality measurements



$1,160

Waveform Generators

MSO7000-AWG
Dual-channel 25 MHz Arbitrary Waveform Generator (only for MSO7000 models)



$722

Please scroll to the sides when using small displays

Power Analysis Software

UPA-DS
Power Analysis Software for Oscilloscopes



$1,136

Please scroll to the sides when using small displays

Active Probe

RP7080
Active, differential, 800 MHz probe for DS6000 or DS/MSO4000 Series Oscilloscopes



$2,708

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$2,311

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$298

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$644

Rack Mount Kit

RM6041
Instrument Rack Mounting Kit



$386

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$611

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$882

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$1,289

Passive Probe

RP5600A
600 MHz Bandwidth 10:1 Passive Probe Kit (these ship standard with DS6000 Series Oscilloscopes)



$590

Passive Probe

RP6150A
1.5GHz Passive Probe. Probe may be different than image indicates.



$442

Active Probe

RP7080S
Active single-ended, 800 MHz probe for DS6000 pr DS/MSO4000 Series Oscilloscopes



$1,354

Active Probe

RP7150
1.5 GHz Bandwidth Active Probe Kit option for DS4000 & DS6000 Series Oscilloscopes



$6,110

Active Probe

RP7150S
Active single-ended,1.5GHz probe for DS6000 pr DS/MSO4000 Series Oscilloscopes



$3,251

Digital Probe Kit

RPL2316
Logic Probe for MSO2000A, MSO4000, and MSO7000 Series Oscilloscopes. Included with MSO models only. Includes cable, leads and grabber clips



$1,547

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.
