MSO5000-E Series   |  Mixed Signal Oscilloscopes

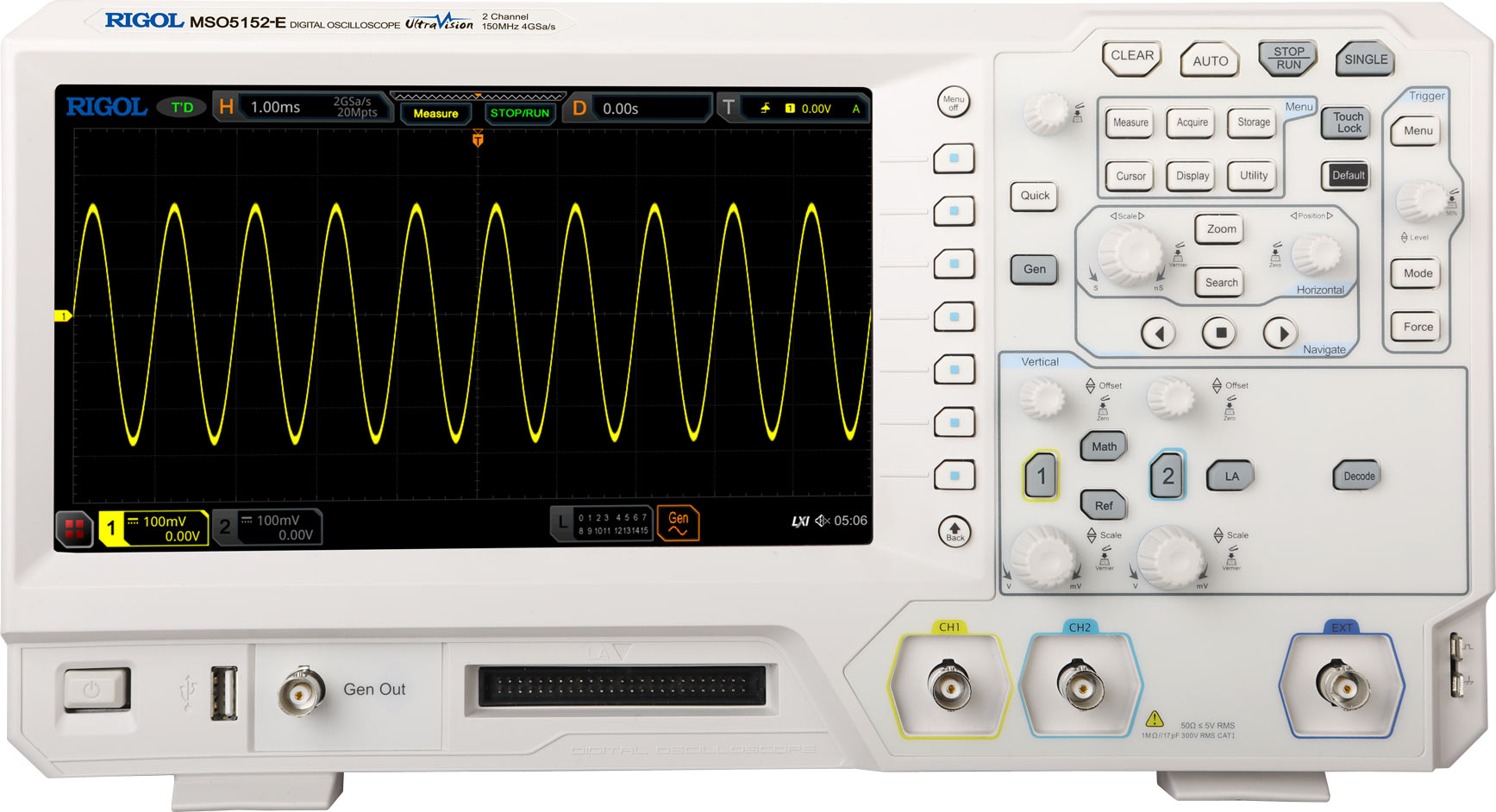

The MSO5152-E Oscilloscope is a great choice for visualizing analog and digital signals with enough advanced capabilities to simplify debugging. Engineers working with relatively low speed signals who need more capability than a beginner oscilloscope can provide can get UltraVision II technology, zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms at an incredible value.
MSO5000E Datasheet & Specs Compare Rigol
Product Feature Customer Benefit
  4 GSa/s Max Sample Rate Visualize fine resolution and signal detail
Visualize fine resolution and signal detail

4 GSamples per second makes it possible to see short and transient signal artifacts on embedded signals. Oversample 150 MHz signals at >26X to highlight small deviations or use both channels and maintain > 13X oversampling on 150 MHz for ultimate signal analysis flexibility.
  Useful Long Memory Search deep memory traces or record segments with flexible memory
Search deep memory traces or record segments with flexible memory

The MSO5000E provides up to 100 Mpt record lengths while making it easier than ever to utilize these samples. Use the deep memory to capture long continuous signals with complete search and navigation tools or configure the instrument for segmented capture to record and playback a series of trigger events. With the flexibility to make use of the deep memory in multiple analysis tools, the MSO5000E Series sets the bar for flexibility and capability in its class.
  7 instruments in 1 Combine an Oscilloscope, Spectrum Analyzer, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Combine an Oscilloscope, Spectrum Analyzer, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.

With the Logic Probe, AWG, and Serial Decode options the MSO5000E Series includes all 7 instruments in one. Solve any of your embedded design challenges whether you need to emulate analog or digital communications, capture high speed signals, verify levels, monitor the spectrum, decode serial communication, monitor parallel buses, or count pulses the MSO5000E makes it possible to quickly and easily move between instrument capabilities all from 1 integrated interface.
  300,000 wfms/s Waveform Capture rate Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.   Faster capture rates reduce the time it takes to visualize these transient effects. Many of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.
  Advanced Analysis Capabilities Analysis tools including precision measurements, histograms, power analysis, and multiple math and decode functions enable in-depth debug
Analysis tools including precision measurements, histograms, power analysis, and multiple math and decode functions enable in-depth debug

The MSO5000E Series provides math functions on 4 channels and serial decoding on up to 4 serial buses simultaneously. The MSO5000E series adds histograms for statistical analysis of dynamic signals and the power analyzer software and option for analysis of switching power supplies. Combined with the 7 in 1 instrument capabilities and the ability to make precision measurements on up to the full 100 MPt memory, the RIGOL MSO5000E provides incredible analysis and insight for the money.
  Flexible user interface including touch Interact with the instrument in the way that works best for you
Interact with the instrument in the way that works best for you

With a 9 inch touchscreen, full set of knobs and buttons, and mouse support the MSO5000E makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.
  Bode Plot Analysis Automate advanced device characterization with new phase and gain Analysis capabilities
Automate advanced device characterization with new phase and gain Analysis capabilities

Use an MSO5000E with the latest firmware and the embedded generator or bundle option and get access to the new Bode Plot capability. The embedded generator sweeps frequency while the oscilloscope measures phase and gain. Bode plot data and chart are shown on the display for easy analysis.

Product View

MSO5000-E
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
Compare Rigol with the competition  MSO5000E Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model BandwidthAnalog ChannelsDigital ChannelsReal-time Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
MSO5000-E Recommended:
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 MSO5000E scope family latest firmware

Drivers

Software

 Ultra Power Analyzer
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216

Logic Probe. Includes cable, leads and grabber clips



$547

Serial Trigger & Decode

MSO5000-EMBD
MSO5000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$410

Please scroll to the sides when using small displays
Passive Probes - One per channel

PVP2350 350 MHz Passive Probes
Please scroll to the sides when using small displays

Serial Trigger & Decode

MSO5000-EMBD
MSO5000 Series Embedded serial bus trigger and analysis (I2C, SPI)



$410

Serial Trigger & Decode

MSO5000-AERO
MSO5000 Series MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)



$410

Serial Trigger & Decode

MSO5000-AUDIO
MSO5000 Series Audio serial bus trigger and analysis (I2S)



$410

Serial Trigger & Decode

MSO5000-AUTO
MSO5000 Series Auto serial bus trigger and analysis (CAN, LIN)



$410

Serial Trigger & Decode

MSO5000-COMP
MSO5000 Series PC serial bus trigger and analysis (RS232/UART)



$410

Deep Memory

MSO5000-E-1RL
MSO5000-E Series - extend maximum memory depth up to 100 Mpts



$327

Waveform Generators

MSO5000-E-AWG
Single channel 25 MHz Arbitrary Waveform Generator



$218

Option Bundle

MSO5000-E-BND
MSO5000-E Series Function and application bundle option including PWR, AWG, and all Serial Decode options.



$821

Serial Trigger & Decode

MSO5000-FLEX
MSO5000 Series FlexRay serial bus trigger and analysis (FlexRay)



$410

Power Analysis

MSO5000-PWR
MSO5000 Series Built-in power analysis Ripple and Power Quality measurements



$410

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Digital Probe Kit

PLA2216

Logic Probe. Includes cable, leads and grabber clips



$547

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, MSO5000 or DS2000 scope.



$212

Demo Board

DK-DS6000
Demonstration signal board for RIGOL Oscilloscopes



$316

Instrument Cover

MSO5000-E-FPC
Front panel cover for the MSO5000-E



$108

Rack Mount Kit

MSO5000-RM
Instrument Rack Mounting Kit



$410

Passive Probe

PVP3150
10x 1x selectable passive probe with 10x bandwidth of 150 MHz and 1x bandwidth of 20 MHz



$48

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak



$2,454

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$648

Differential Probe

RP1050D
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp



$936

High Voltage Probe

RP1050H
High Voltage 15KV (1000:1), 50MHz Passive Probe. AC:Pulse = 30KVpp AC:Sine= 10KVrms



$1,369

Power Analysis Jig

RPA246

Power analysis phase difference correction jig



$81

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$474
