DG800 Pro Series   |  Function / Arbitrary Waveform Generators

DG800 Pro
The DG800 Pro Series function/arbitrary waveform generator is an instrument packed with functionality, including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and frequency counter. It delivers impressive performance for a generator of its size, offering 625 MSa/s sample rate, 3 ns rise time, 16-bit vertical resolution, and up to 8 Mpts/CH waveform length.
Product Feature Customer Benefit
625 MSa/s sample rate and 16-bit vertical resolution Ensures more accurate waveform output
Integrated 1 GHz frequency counter Enables measurement of HF signals for easier debugging
7” touch screen with dual-display capability Configure dual-channel waveforms concurrently
Sequence Mode Allows a user to load multiple test cases to be performed sequentially and automatically (up to 64 steps and 256 repetition counts)
Integrated harmonic generator Provides a more accurate test method for devices like high-order filters and amplifiers
Type-C power interface Enables the use of mobile power banks for measurement functionality on the go
Compact form factor & VESA 100x100 compliant rear panel Conserves desktop space

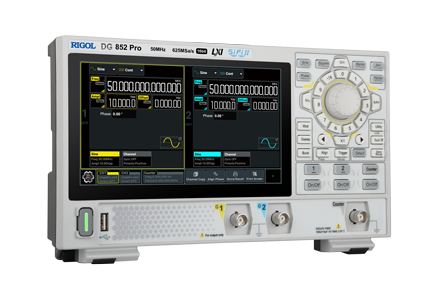

Product View

DG800 Pro

Specs

Please scroll to the sides when using small displays
Model Max Output FrequencySample RateVertical ResolutionArbitrary Waveform LengthChannels Price (CAD)
DG821 Pro 25 MHz625 MSa/s16 bits2 Mpts (8 Mpts optional) 1 channels $527 In Stock
DG822 Pro 25 MHz625 MSa/s16 bits2 Mpts (8 Mpts optional) 2 channels $579 In Stock
DG852 Pro 50 MHz625 MSa/s16 bits2 Mpts (8 Mpts optional) 2 channels $659

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Deep Arb Memory

DG800 Pro-3RL

8M upgrade option for DG800 Pro Series Generators



$104

Channel Option

DG800 Pro-DCH

2 channel upgrade option for DG800 Pro Series Generators



$104

Please scroll to the sides when using small displays
CB-BNC-BNC-MM-100

BNC Cable (length 1 meter)

Please scroll to the sides when using small displays

Deep Arb Memory

DG800 Pro-3RL

8M upgrade option for DG800 Pro Series Generators



$104

Channel Option

DG800 Pro-DCH

2 channel upgrade option for DG800 Pro Series Generators



$104

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Instrument Carrying Case

BAG-800

Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800



$91

Attentuator

RA5040K
40 dB attenuator accessory for oscilloscopes or generators



$63
