DNA5000 Series   |  VECTOR NETWORK ANALYZERS

DNA5000

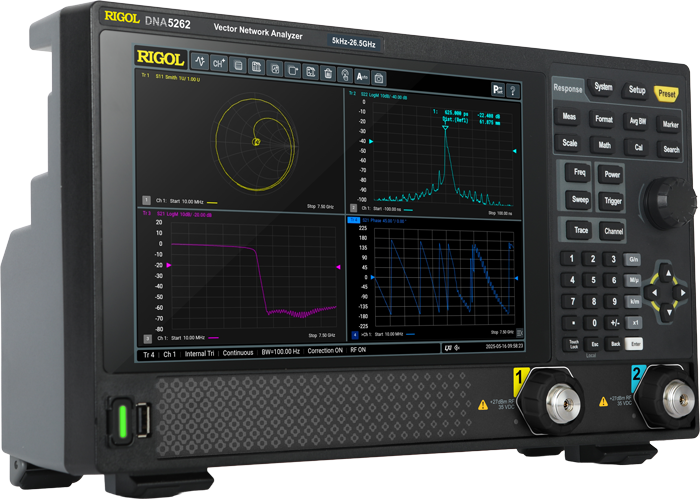

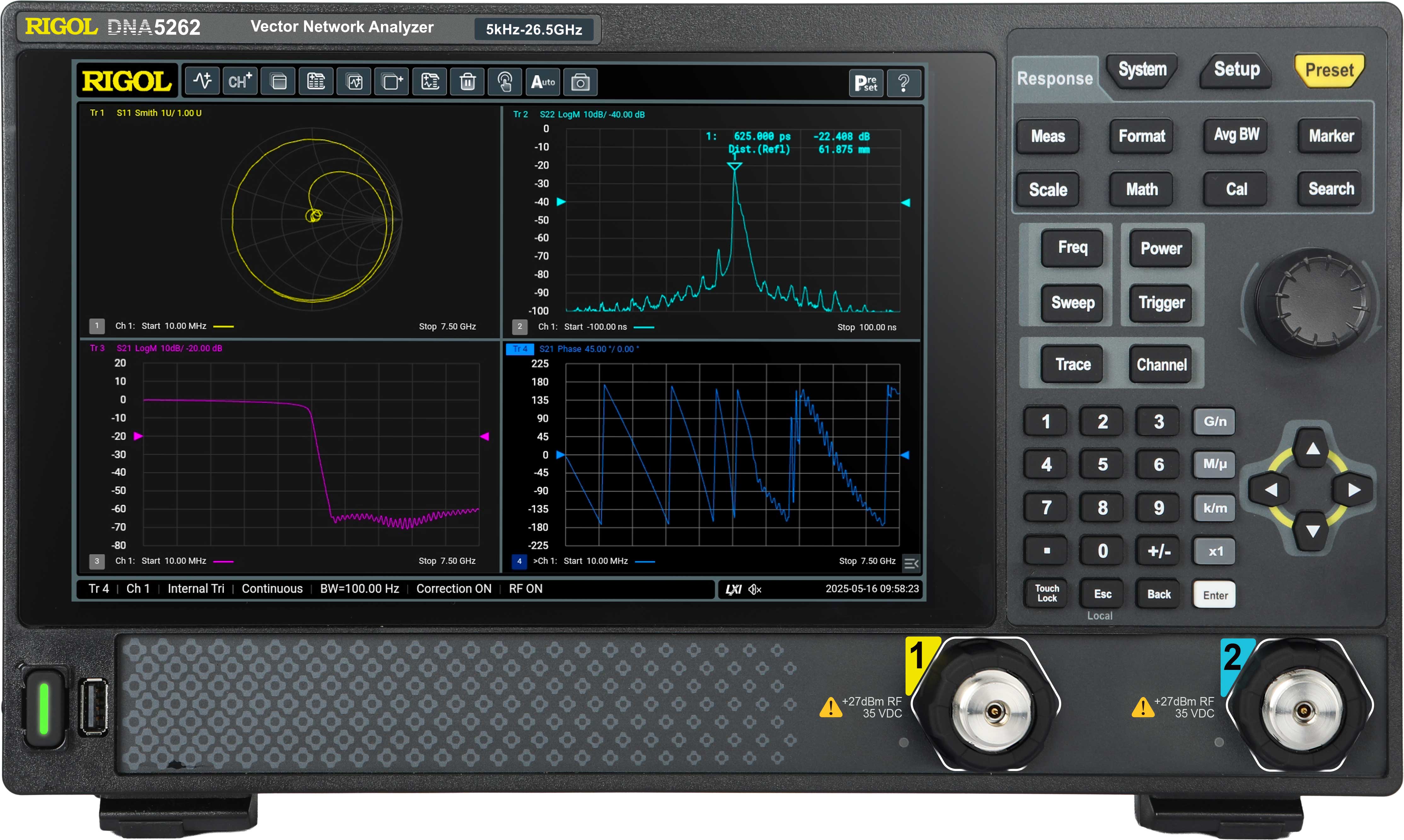

The DNA5000 Vector Network Analyzer empowers you to precisely capture S-parameters, assessing your device's full transmission and reflection profile. Effortlessly tackle impedance matching with intuitive Smith charts and polar plots and rapidly diagnose cable and antenna issues using the powerful Distance-to-Fault (DTF) function. Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
DK-DNA10_DataSheetDNA5000 Data SheetECalModule_DatasheetRF-Cable_DataSheet
Product Feature Customer Benefit
Broad Frequency Range for Diverse Applications Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Superior Performance & Stability Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.
Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Advanced Analysis Tools Built-In Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.
Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

True Device Performance via De-embedding See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.
See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

Intuitive Calibration No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.
No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Mechanical or Electronic Calibration Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.
Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Complete Accessory Support Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.
Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

Drop-In Compatibility Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.
Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

Product View

DNA5000
Whitepapers
Purchasing Info
Buy Now
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DK-DNA10_DataSheet DNA5000 Data Sheet ECalModule_Datasheet RF-Cable_DataSheet   Firmware

Specs

Please scroll to the sides when using small displays
Model PortsFrequency RangeHigh Dynamic RangeMax. Output Power Price (CAD)
DNA5042 2 5 kHz ~ 4.5 GHz127 dB (typ.)10 dBm $11,878.68
$10,690.81
DNA5082 2 5 kHz ~ 8.5 GHz127 dB (typ.)10 dBm $19,666.68
$17,700.01
DNA5142 2 5 kHz ~ 14 GHz127 dB (typ.)10 dBm $26,266.68
$23,640.01
DNA5202 2 5 kHz ~ 20 GHz127 dB (typ.)10 dBm $38,278.68
$34,450.81
DNA5262 2 5 kHz ~ 26.5 GHz127 dB (typ.)10 dBm $47,518.68
$42,766.81
 Compare Product Families

App Notes

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

icon DNA5000_DNA6000_DNA6000-R_Firmware_Update_v1.02
Please scroll to the sides when using small displays

Cable

CB6100B
RF Cable, DC ~ 50 GHz, 2.4 mm (m) - 2.4 mm (m), 100 cm

Cable

CB6101B
RF Cable, DC ~ 50 GHz, 2.4 mm (m)- 2.4 mm (f), 100 cm

Cable

CB6200A
RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (f), 100 cm

Cable

CB6200B
RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (m), 100 cm

Cable

CB6201A
RF Cable, DC ~ 18 GHz, SMA (m) - SMA (f), 100 cm

Cable

CB6201B
RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (f), 100 cm

Cable

CB6202A
RF Cable, DC ~ 18 GHz, N (m) - N (f), 100 cm

Cable

CB6203A
RF Cable, DC ~ 18 GHz, N (m) - SMA (f), 100 cm

Cable

CB6204A
RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (f), 100 cm

ECAL

ECAL109-NF4
Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL114-NF4
Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL126-35F4
Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 4 ports

ECAL

ECAL209-NF4
Electronic Calibration Module, DC ~ 9 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL214-NF4
Electronic Calibration Module, DC ~ 14 GHz, Type-N (f), 50 Ω, 4 ports

ECAL

ECAL226-35F4
Electronic Calibration Module, DC ~ 26.5 GHz, 3.5 mm (f), 4 ports

MCAL

MCAL114-NK1
Mechanical Calibration Kit, DC ~ 14 GHz, Type-N (m & f), 50 Ω

MCAL

MCAL118-APC7
Airline Fixture and Calibration Kit

MCAL

MCAL214-35F5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (f)

MCAL

MCAL214-35M5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (m)

MCAL

MCAL226-35M5
4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)

Rackmount Kit

RM6051

The RM6051 is compatible with the MHO/DHO5000, MHO2000, DS9000, DG5000 Pro, DG6000, DNA5000, and RSA6000 series.
Please scroll to the sides when using small displays

Functional Options

DNA-DTF10

Distance to Fault

$1,318.68
$1,186.81

Functional Options

DNA-TAS10
VNA Test Automation Software

$10,558.68

Functional Options

DNA-TDA10

Time Domain Analysis

$2,110.68
$1,899.61

Functional Options

DNA-TDR10
Enhanced Time Domain Reflectometry

$11,878.68

Extended Warranty

DNA5042 (R5-1)

DNA5042 extended warranty, 2 years, option with new product

$772.20

Extended Warranty

DNA5082 (R5-1)

DNA5082 extended warranty, 2 years, option with new product

$1,283.04

Extended Warranty

DNA5142 (R5-1)

DNA5142 extended warranty, 2 years, option with new product

$1,698.84

Extended Warranty

DNA5202 (R5-1)

DNA5202 extended warranty, 2 years, option with new product

$2,482.92

Extended Warranty

DNA5262 (R5-1)

DNA5262 extended warranty, 2 years, option with new product

$3,053.16

Please scroll to the sides when using small displays

Adapters and Connectors

AD-3.5F-2.92M-L-26G

Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz

$143.88

Adapters and Connectors

AD-3.5F-3.5F-L-26G

Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz

$104.28

Adapters and Connectors

AD-3.5M-2.92F-L-26G

Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz

$143.88

Adapters and Connectors

AD-3.5M-3.5M-L-26G

Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz

$104.28

Adapters and Connectors

AD-NF-NF-L-18G

Adapter, N (f) - N (f), DC ~ 18GHz

$51.48

Adapters and Connectors

AD-NM-BNCF-L-4G

Adapter, N (m) - BNC (f), DC ~ 4GHz

$104.28

Adapters and Connectors

AD-NM-NM-L-18G

Adapter, N (m) - N(m), DC ~ 18GHz

$91.08

Adapters and Connectors

AD-SMAF-BNCM-L-4G

Adapter, SMA (f) - BNC (m), DC ~ 4GHz

$104.28

Adapters and Connectors

AD-SMAF-NM-L-18G

Adapter, SMA (f) - N (m), DC ~ 18GHz

$77.88

Adapters and Connectors

AD-SMAF-SMAF-L-18G

Adapter, SMA (f) - SMA (f), DC ~ 18GHz

$77.88

Adapters and Connectors

AD-SMAM-NM-L-18G

Adapter, SMA (m) - N (m), DC ~ 18GHz

$77.88

Adapters and Connectors

AD-SMAM-SMAM-L-18G

Adapter, SMA (m) - SMA (m), DC ~ 18GHz

$64.68

Cable

CB-3.5M-3.5M-100-L-26G

RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm

$539.88

Cable

CB-NM-3.5M-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm

$487.08

Cable

CB-NM-NM-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm

$487.08

Cable

CB-NM-SMAM-100-L-18G

RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm

$487.08

Cable

CB-NMD3.5F-3.5F-63-L-26G

VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm

$1,450.68

Cable

CB-SMAM-SMAM-100-L-18G

RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm

$487.08

ECAL

ECAL109-NF2

Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports

$5,278.68

ECAL

ECAL114-NF2

Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports

$5,938.68

ECAL

ECAL126-35F2

Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports

$7,918.68

MCAL

MCAL104-NF1

Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω

$658.68

MCAL

MCAL104-NM1

Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω

$658.68

MCAL

MCAL104-SF1

Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f)

$790.68

MCAL

MCAL104-SM1

Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m)

$790.68

MCAL

MCAL109-NF1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω

$2,110.68

MCAL

MCAL109-NK1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω

$3,958.68

MCAL

MCAL109-NM1

Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω

$2,110.68

MCAL

MCAL109-SF1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f)

$2,506.68

MCAL

MCAL109-SK1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f)

$4,222.68

MCAL

MCAL109-SM1

Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m)

$2,506.68

MCAL

MCAL126-35K1

Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f)

$6,334.68

MCAL

MCAL226-35F5

4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)

$5,014.68

General Optional Accessory

TW12-19

Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors

$315.48

General Optional Accessory

TW8-8

Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors

$315.48
