RSA5000 Series   |  Spectrum Analyzers

RSA5000
Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.  Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems.  The RSA5000 combines industry leading realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.
Experience the Power of Real-Time Spectrum Analysis.
Capture, Identify, Isolate, and Analyze with the RSA family
Product Feature Customer Benefit
  DANL as low as -165 dBm with optional preamp View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.   Using the optional PreAmplifier the RSA5000 enables engineers to accurately view signals down to a noise floor of -165 dBm. In addition to locating and isolating lower power signals across the spectrum, this makes it possible to more precisely characterize all of the critical RF components within the transceiver design including attenuators, filters, mixers, and antennas
  1 Hz Minimum Resolution Bandwidth (RBW) Provides high resolution to separate signals with close frequencies enabling easier signal identification for characterization and advanced measurements.
Provides high resolution to separate signals with close frequencies enabling easier signal identification for characterization and advanced measurements.   Analyzing signals that are close together in frequency is critical to validation of many RF devices and systems. With the RSA5000, sweep a signal bandwidth with a RBW setting of just 1 Hz to view additional detail on close signals.
  1 ms full span sweep Utilize the fast 1 millisecond full span sweep to quickly identify signals of interest.
Utilize the fast 1 millisecond full span sweep to quickly identify signals of interest.   Quickly evaluating a broad spectrum for signals of interest and possible signs of interference or unwanted transmissions can be time consuming as many of these signals are moving to shorter and shorter durations. The RSA5000 makes a full span sweep in just 1 ms making it possible to capture many of these signals on the first pass and quickly get a more comprehensive understanding of the local transmissions before moving to real-time for additional analysis.
  Up to 40 MHz of Real-Time BW View wider band and hopping signals at one time without additional setup making identifying and analyzing signals of interest faster and easier.
View wider band and hopping signals at one time without additional setup making identifying and analyzing signals of interest faster and easier.   Engineers debugging time is a critical resource in any new design process. RF debugging is already a complicated challenge. Expanding the Real-Time bandwidth of the RSA5000 Series Analyzer to 40 MHz with the RSA5000-BW40 option makes it faster and easier to capture, isolate, and debug wider bandwidth signals with a single setup.
  7.45 µs 100% POI Capture pulsed transmissions as short as 7.45 µs with guaranteed capture and power accuracy.
Capture pulsed transmissions as short as 7.45 µs with guaranteed capture and power accuracy.   Probability of Intercept is an important specification for any serious Real-Time Spectrum Analyzer. It is the only way to know if your power measurements are accurate given a signal’s on time. Many Real-Time analyzers leave this value unspecified or make it dependent on the PC, but the RSA5000’s platform makes it possible to specify a 100% POI as low as 7.45 µs and to specify how that changes based on real-time span and RBW settings. Use these specifications to confidently capture and make power measurements of short duration transmissions.

Product Details

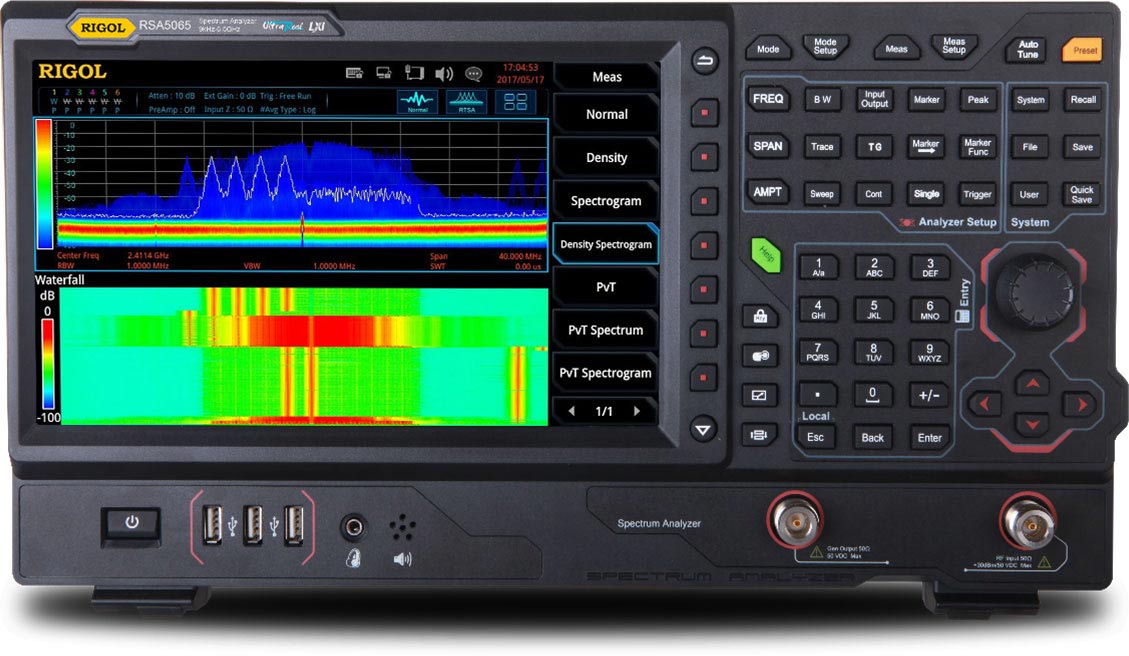

RSA5000 with Callouts

Specs

Please scroll to the sides when using small displays
Model FrequencyDANLPhase NoiseRBW Price (CAD)
RSA5032 3.2 GHz-165 dBm-108 dBc/Hz1 Hz $10,319 In Stock
RSA5032-TG 3.2 GHz-165 dBm-108 dBc/Hz1 Hz $11,609 In Stock
RSA5065 6.5 GHz-165 dBm-108 dBc/Hz1 Hz $12,899 In Stock
RSA5065-TG 6.5 GHz-165 dBm-108 dBc/Hz1 Hz $14,189

 Interactive Selection Tool

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays
USB Cable

Instrument Cover

Instrument Quick Guide

Calibration Certificate

Power Cord

Please scroll to the sides when using small displays

Real Time BW

RSA5000-B40
40 MHz Real Time Bandwidth Option for the RSA5000 Series Real Time Spectrum Analyzers. RSA5000s come standard with 25 MHz Real Time Bandwidth. License code is emailed and user installed.



$1,934

Advanced Measurements

RSA5000-AMK
Advanced Measurement Kit Option for the RSA5000 Series Real Time Spectrum Analyzers. License code is emailed and user installed.



$773

PreAmplifier

RSA5000-PA
PreAmplifier Option for the RSA5000 Series Real Time Spectrum Analyzers. License code is emailed and user installed.



$515

Please scroll to the sides when using small displays

Spectrum Analyzer Software

Ultra Spectrum
Software for controlling and analyzing data from RIGOL spectrum analyzers.



$344

EMI Software

S1210 EMI Pre-compliance
EMI PreCompliance Software for RIGOL Spectrum Analyzers. Requires EMI option to be enabled on the instrument.



$644

Please scroll to the sides when using small displays

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$447

Utility Kit

DSA Utility Kit
DSA Accessories Package including cables, adaptors, and antennas.



$1,072

VSWR Bridge

VB1040
800 MHz to 4 GHz VSWR Bridge with DSA8-VSWR software for DSA800 Spectrum Analyzers. *SW does NOT work with DSA1000 Family. Requires TG Option.



$1,191

VSWR Bridge

VB1032
VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included. Requires TG Option. Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: >= 25 dB



$851

VSWR Bridge

VB1080
VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. *SW does NOT work with DSA1000 Family. Requires TG Option.



$947

RF Adaptor Kit

RF Adaptor Kit
RF Cable and adaptor kit



$406

RF CATV Kit

RF CATV Kit
Kit Includes 50 to 75 Ohm Adaptors (2pcs)



$541

RF Attenuator Kit

RF Attenuator Kit
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)



$676

High Power Attenuator

ATT03301H
30dB High Power Attenuator, Max Power 100W



$297

N Type Cable

CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable



$257

SMA Cable

CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable



$257

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$644

Rack Mount Kit

RM6041
Rack Mounting Kit for a RSA5000 Series Spectrum Analyzer



$386

High Accuracy Clock

OCXO-C08
High Stability Clock option for the RSA5000 series. Improves clock aging rate from <1 ppm/year to <0.03 ppm/year.
