DSA700 Series   |  Spectrum Analyzers

DSA700
Rigol's DSA700 series spectrum analyzer makes radio, IoT, and educational/hobbyist measurements more accessible than ever with value analyzers designed for lower frequency RF test. The DSA700 shares the popular mechanical package of the DSA800 series analyzer with a focus on measurements below 1 GHz. The spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA700 also distinguishes between signals with a frequency difference as little as 100 Hz. The DSA700 has the capability to monitor FSK signals with the 2FSK-DSA option. A complete spectrum analyzer for your low frequency signals and systems at an unprecedented price.
SpecificationsDatasheet
Product Feature Customer Benefit
  Low Noise floor as low as -130 dBm View lower powered signals (harmonics, interference sources) and ease trouble-shooting.
View lower powered signals (harmonics, interference sources) and ease trouble-shooting.   Displayed Average Noise Level determines the lowest power level an analyzer can resolve. It is effected by settings including PreAmps, Attenuation, and RBW. On the DSA700 Series, Typical DANL is as low as -130dBm. The Preamplifier is standard on all DSA700 Series models.
  EMI PreCompliance measurements (option) Use FCC bandwidths, EMI filter, and QuasiPeak Detector to make PreCompliance measurements during the design process saving time and money getting new products to market.
Use FCC bandwidths, EMI filter, and QuasiPeak Detector to make PreCompliance measurements during the design process saving time and money getting new products to market.   The Rigol DSA series of spectrum analyzers are ideal for performing near-field probing, conducted, and emitted precompliance measurements.

Add the S1210 PreCompliance software, Near Field Probes (NFP-3), and the EMI-DSA800 option to make complete EMI PreCompliance measurements with the DSA700 Series analyzers.
  Down to 100Hz Minimum Resolution Bandwidth (RBW) Provides enough resolution to separate signals with similar frequencies enabling easier signal identification
Provides enough resolution to separate signals with similar frequencies enabling easier signal identification   Resolution Bandwidth sets the distance between measurements in frequency. This is important, for instance, when you need to differentiate between 2 carriers that are only 500 Hz apart. They can't be viewed as distinct signals with a RBW setting as large as the separation.




  Standard PreAmplifier included The PreAmplifier significantly improves the instrument's noise floor enabling users to monitor and debug smaller signals.
The PreAmplifier significantly improves the instrument's noise floor enabling users to monitor and debug smaller signals.   Small signal detection and differentiation is critical to modern RF design and debugging. The standard preAmplifier on the DSA700 Series spectrum analyzer makes these signals and their characteristics easier to evaluate and improve.

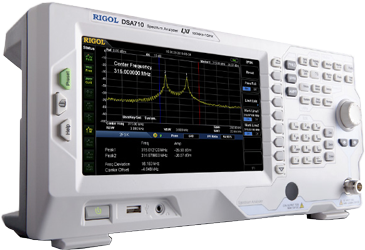

Product View

DSA700

RF Basics Technology Guide

RF Design and Test Fundamentals from terminology through advanced EMI debugging
Download Now
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look though our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DSA700 Data Sheet  DSA700 Specs

Specs

Please scroll to the sides when using small displays
Model DANLPhase NoiseRBW Price (CAD)
DSA705 -130 dBm-80 dBc/Hz100 Hz $867
DSA710 -130 dBm-80 dBc/Hz100 Hz $1,239
 Interactive Selection Tool

Specifications:

 DSA700 Specs
Array ( [0] => Array ( [SolutionNumber] => 00001406 [SolutionName] => DSA700 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DSA700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => https://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06d6/1/-/-/-/-/DSA700%20User%27s%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kBOrIAM [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:56 [CreatedDate] => 2016-07-05 18:16:36 [SystemModstamp] => 2017-07-18 21:52:56 [lastUpdate] => 2017-07-20 08:15:08 ) [1] => Array ( [SolutionNumber] => 00001407 [SolutionName] => DSA700 Options and Accessories Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DSA700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => https://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06d4/1/-/-/-/-/DSA700%20Options%20and%20Accessories.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kBOwIAM [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-07-05 18:17:12 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) [2] => Array ( [SolutionNumber] => 00000373 [SolutionName] => DSA Declassification Guide [SolutionNote] => This document outlines the types of memory, locations, and sanitization process for the current spectrum analyzers. [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => All DSA; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0165/0/-/-/-/-/file.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G00000001ONBIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2012-05-09 18:20:05 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) ) 3Array ( [0] => Array ( [SolutionNumber] => 00001406 [SolutionName] => DSA700 User's Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DSA700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => https://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06d6/1/-/-/-/-/DSA700%20User%27s%20Guide.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kBOrIAM [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:56 [CreatedDate] => 2016-07-05 18:16:36 [SystemModstamp] => 2017-07-18 21:52:56 [lastUpdate] => 2017-07-20 08:15:08 ) [1] => Array ( [SolutionNumber] => 00001407 [SolutionName] => DSA700 Options and Accessories Guide [SolutionNote] => [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => DSA700 Family; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => https://beyondmeasure.rigoltech.com/acton/attachment/1579/f-06d4/1/-/-/-/-/DSA700%20Options%20and%20Accessories.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G0000000kBOwIAM [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => False [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2016-07-05 18:17:12 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) [2] => Array ( [SolutionNumber] => 00000373 [SolutionName] => DSA Declassification Guide [SolutionNote] => This document outlines the types of memory, locations, and sanitization process for the current spectrum analyzers. [Type__c] => User's Manual [Intro_paragraph__c] => [Products_Related__c] => All DSA; [CA_site] => True [US_site] => True [EU_site] => True [JP_site] => False [INT_site] => True [PublicUrl__c] => http://beyondmeasure.rigoltech.com/acton/attachment/1579/f-0165/0/-/-/-/-/file.pdf [VideoUrl__c] => [IsReviewed] => True [Order__c] => [Id] => 501G00000001ONBIA2 [Category__c] => [NeedsUpdated__c] => True [LastModifiedById] => 005A0000000ECzEIAW [OwnerId] => 005A0000000w9PGIAY [MobileSite__c] => [MobileURL__c] => [CurrencyIsoCode] => USD [SolutionLink__c] => [CreatedById] => 005A0000000w9PGIAY [IsPublished] => True [IsPublishedInPublicKb] => False [TimesUsed] => 0 [Status] => Reviewed [IsDeleted] => False [IsHtml] => False [Rating_Stars__c] => 0.00 [News_Expiration_Date__c] => 0000-00-00 [Optional_Accessory__c] => False [LastModifiedDate] => 2017-07-18 21:52:57 [CreatedDate] => 2012-05-09 18:20:05 [SystemModstamp] => 2017-07-18 21:52:57 [lastUpdate] => 2017-07-20 08:15:09 ) ) 3

User's Manual(s)

 DSA700 User's Guide DSA700 Options and Accessories Guide DSA Declassification Guide

Programming Manual(s)

 DSA700 Programming manual

Service Manuals

 3 Year Product Warranty Agreement

Datasheets

 DSA700 Data Sheet

Specifications

 DSA700 Specs

Catalogs

 Full Line Catalog
PreAmplifier

PreAmplifier is included on DSA700 Series models
Instrument Quick Guide

Calibration Certificate

Power Cord

Signal Capture Mode

SSC-DSA
Real Time signal capture option for the spectrum analyzer. Enables 1.5 MHz of real time capture for signals like FSK. Works on the DSA700 series and the DSA815 or DSA815-TG.



$260

Advanced Measurements

AMK-DSA800
Advanced Measurement Kit



$716

EMI Settings

EMI-DSA800
EMI Filter & Quasi-Peak Detector Kit



$859

EMI Software

S1210 EMI Pre-compliance
EMI PreCompliance Software for RIGOL Spectrum Analyzers. Requires EMI option to be enabled on the instrument.



$619

Spectrum Analyzer Software

Ultra Spectrum
Software for the DSA800, DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package.



$330

GPIB Adaptor

USB-GPIB
USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly.



$430

Carrying Case

BAG-G1
Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope.



$193

Utility Kit

DSA Utility Kit
DSA Accessories Package including?cables, adaptors, and antennas.



$1,031

RF Transmitter Test Kit

TX1000
RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier.



$1,232

RF CATV Kit

RF CATV Kit
Kit Includes 50 ? to 75 ? Adaptor (2pcs)



$520

RF Attenuator Kit

RF Attenuator Kit
Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs)



$650

High Power Attenuator

ATT03301H
30dB High Power Attenuator, Max Power 100W



$286

N Type Cable

CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable



$247

SMA Cable

CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable



$247

RF Receiver Test Kit

RX1000
RF Demo Kit (Receiver)



$1,119

Near Field Probe Kit

NFP-3
Near Field Probe Kit



$619
