MHO900 Series   |  Digital Oscilloscopes

MHO900
MHO900 Series Data SheetMHO98 Series Data Sheet
Product Feature Customer Benefit
12 Bit Resolution With 12-bit vertical resolution and up to 4096 levels of quantization bits – 16 times that of an 8-bit oscilloscope – measurement
500 Mpts Memory Depth With up to 500 million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode.
Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

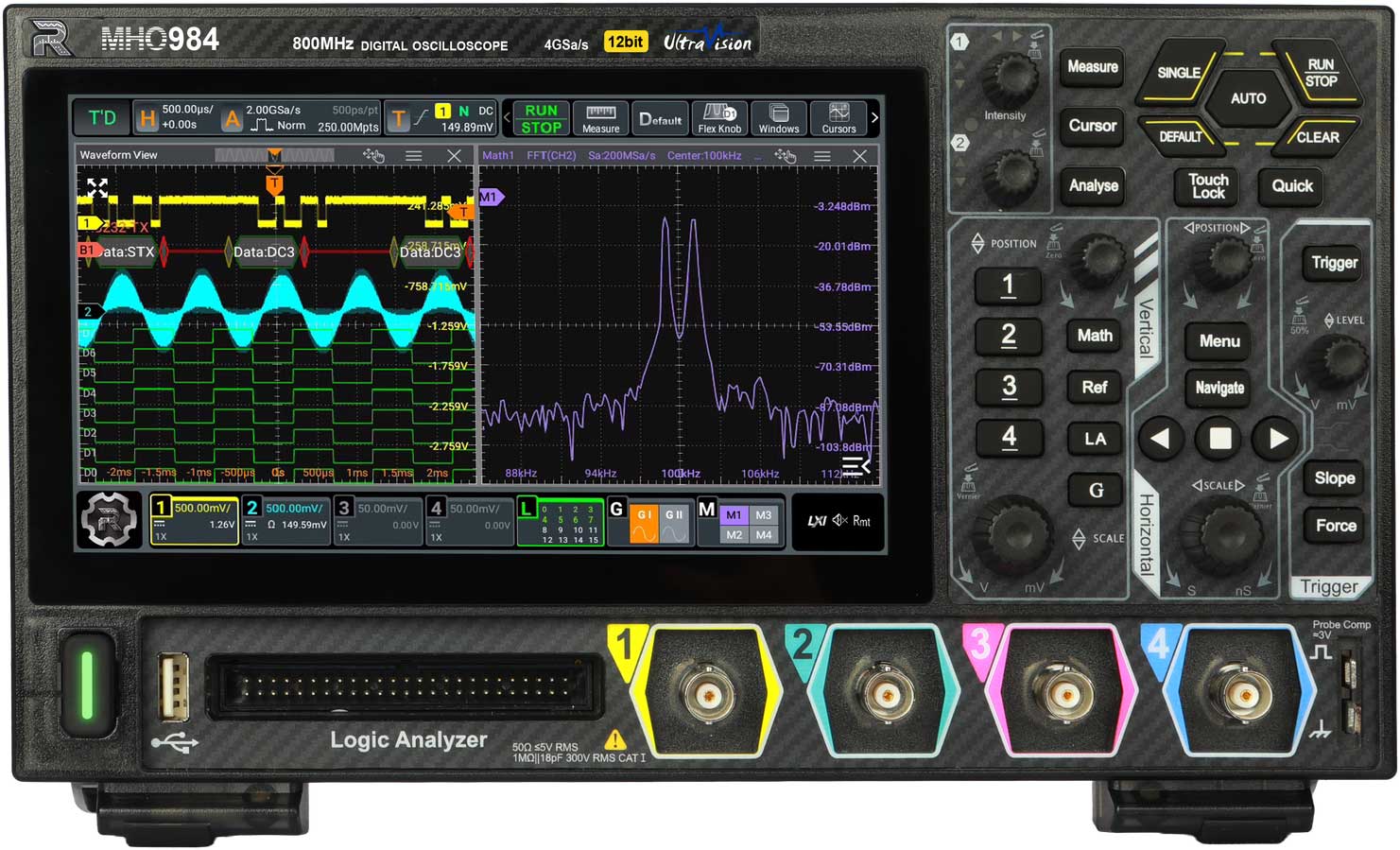

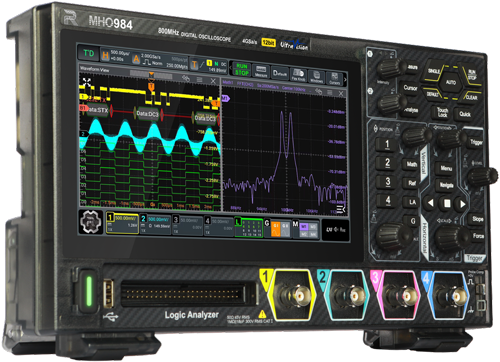

Product View

MHO900
Whitepapers
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 MHO900 Series Data Sheet MHO98 Series Data Sheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthMax Memory DepthWaveform Capture Rate Price (CAD)
MHO98 4 12 Bit1 GHz500 Mpts1000000 wfms/s $1,847
MHO984 4 12 Bit800 MHz500 Mpts1000000 wfms/s $1,715
MHO954 4 12 Bit500 MHz500 Mpts1000000 wfms/s $1,451
MHO934 4 12 Bit350 MHz500 Mpts1000000 wfms/s $1,319
 Compare Product Families

App Notes

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Software

icon C#.NET basic instrument communication exampleicon How do I install UltraSigma Compatible software?icon How do I install UltraSigma?icon Rigol Software Installation and Usage guideicon User's Guide for UltraSigma Softwareicon UltraSigma Instrument Connectivity Driver
Please scroll to the sides when using small displays

Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

MHO900, MIL-STD-1553 Bus Triggering and Decoding Analysis Option

MHO900-AEROA

MHO900, MIL-STD-1553 Bus Triggering and Decoding Analysis Option

$184

MHO900，2 Channel 100 MHz Arbitrary Function Generator Option, includes Bode-plot

MHO900-AFG100

MHO900，2 Channel 100 MHz Arbitrary Function Generator Option, includes Bode-plot

$923

MHO900，2 Channel 50 MHz Arbitrary Function Generator Option, includes Bode-plot

MHO900-AFG50

MHO900，2 Channel 50 MHz Arbitrary Function Generator Option, includes Bode-plot

$553

MHO900，I2S Audio-Bus Trigger and Analysis Option

MHO900-AUDIOA

MHO900，I2S Audio-Bus Trigger and Analysis Option

$183

MHO900, Automotive Serial Bus CAN-FD Decoding and Analysis Option

MHO900-AUTOA

MHO900, Automotive Serial Bus CAN-FD Decoding and Analysis Option

$183

MHO900, Functional Upgrade Package Option, includes: AFG100, AUDIOA, AUTOA, FlexA, AEROA

MHO900-BND

MHO900, Functional Upgrade Package Option, includes: AFG100, AUDIOA, AUTOA, FlexA, AEROA

$1,107

MHO900，350 MHz to 500 MHz Bandwidth Upgrade Option

MHO900-BWU03T05

MHO900，350 MHz to 500 MHz Bandwidth Upgrade Option

$368

MHO900，350 MHz to 800 MHz Bandwidth Upgrade Option

MHO900-BWU03T08

MHO900，350 MHz to 800 MHz Bandwidth Upgrade Option

$553

MHO900，500 MHz to 800 MHz Bandwidth Upgrade Option

MHO900-BWU05T08

MHO900，500 MHz to 800 MHz Bandwidth Upgrade Option

$368

MHO900, Flexray Bus Trigger and Decode Option

MHO900-FlexA

MHO900, Flexray Bus Trigger and Decode Option

$183

MHO900, 500Mpts Memory Upgrade Option

MHO900-RLU-05

MHO900, 500Mpts Memory Upgrade Option

$368

Please scroll to the sides when using small displays

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators

$25

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)

$26

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe

$844

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe

$1,055

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe



$1,679

Optical-fiber Isolated Probe

PIA1050

500 MHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$16,578

Optical-fiber Isolated Probe

PIA1100

1 GHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$24,921

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply

$2,059

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak

$1,144

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

$4,499

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.

$6,480

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.

$5,718

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise

$7,247

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation

$692

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation

$1,370

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

$832

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE

$321

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp

$499
