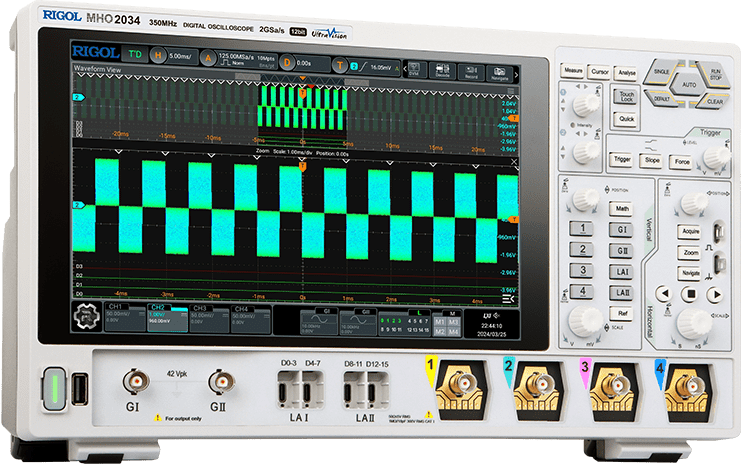

MHO2000 Series   |  High-Resolution Oscilloscopes

MHO2000
The MHO2000 series comprises two models of high-resolution mixed-signal oscilloscopes intended for design, debugging, and test applications requiring bandwidths up to 350 MHz. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, and excellent noise floor are ready to meet the high-accuracy needs of a wide array of applications. Additionally, the MHO2000 series oscilloscopes sports a 10.1-inch touchscreen, optional integrated AFG, Bode plot analysis, and a variety of serial decode options.
MHO2000 Series Data Sheet
Product Feature Customer Benefit
12-bit Vertical Resolution With 12-bit vertical resolution and up to 4096 levels of quantization bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform.
Low Noise Make the most of 12 bit analog to digital converters with a significantly lower noise floor.
500 Mpts Memory Depth With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode.
Multi-Instrument Capability Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis.
Protocol Analysis for today’s common serial communication buses Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

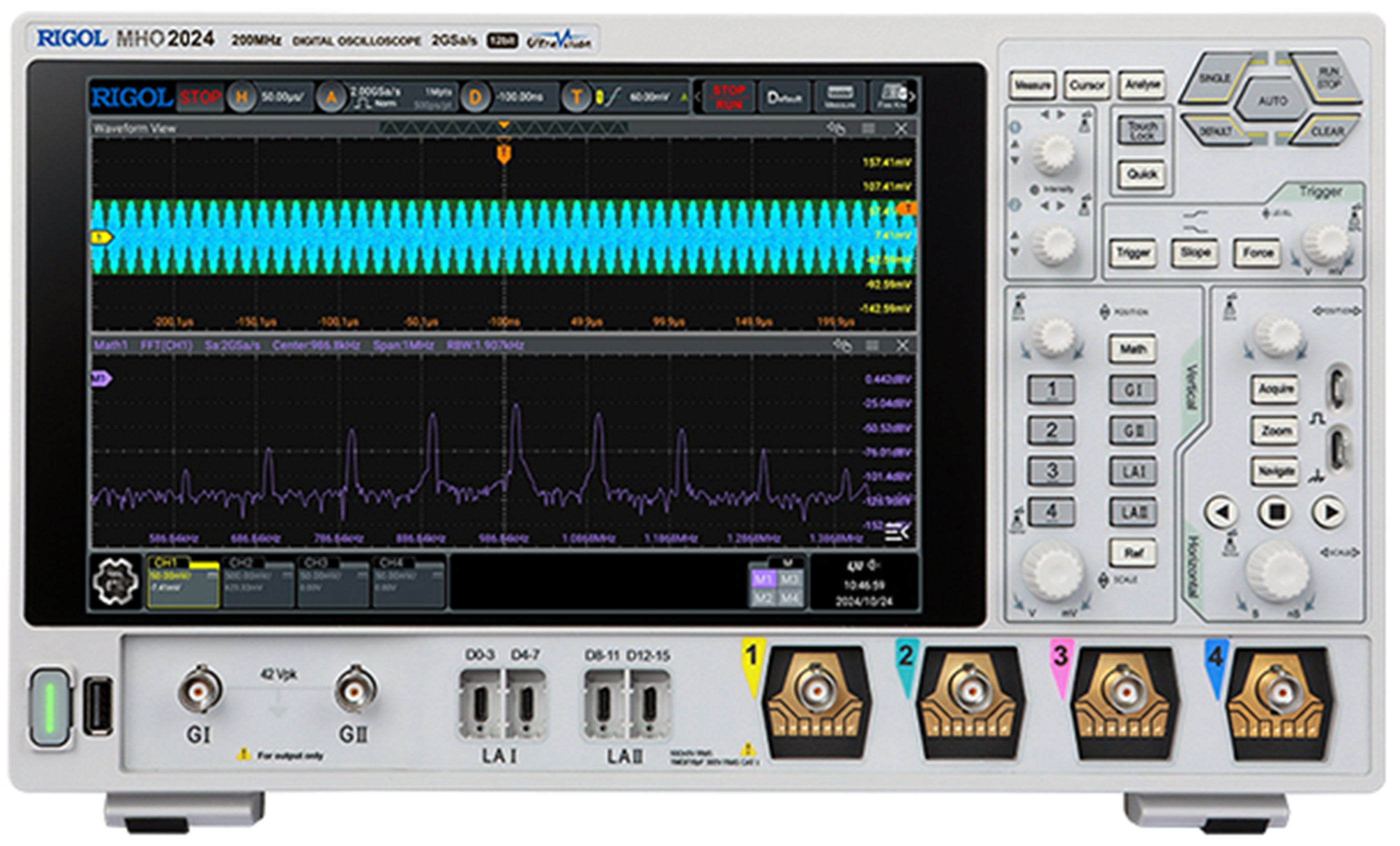

Product View

MHO2000
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 MHO2000 Series Data Sheet   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsDigital ChannelsBandwidthMax Sample RateWaveform Capture RateMax Memory Depth Price (CAD)
MHO2024 4 16 200 MHz2 GSa/s1,000,000 wfms/s500 Mpts $3,561
MHO2034 4 16 350 MHz2 GSa/s1,000,000 wfms/s500 Mpts $4,794
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

 UltraSigma Instrument Connectivity Driver C#.NET basic instrument communication example How do I install UltraSigma Compatible software? How do I install UltraSigma? Rigol Software Installation and Usage guide User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

Options Bundle

MHO2000-BND

MHO2000 Bundle Option - includes AERO, AUDIO, AUTO, AWG, FLEX, PWR options



$1,506

Integrated AWG

MHO2000-AWG

MHO2000 AWG - Built-in dual-channel 50 MHz function signal generator option



$574

Please scroll to the sides when using small displays
Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Options Bundle

MHO2000-BND

MHO2000 Bundle Option - includes AERO, AUDIO, AUTO, AWG, FLEX, PWR options



$1,506

Integrated AWG

MHO2000-AWG

MHO2000 AWG - Built-in dual-channel 50 MHz function signal generator option



$574

MIL-STD-1553 Decode

MHO2000-AEROA

MHO2000-AEROA - MIL-STD-1553 bus triggering and decoding option



$410

I2S Decode

MHO2000-AUDIOA

MHO2000-AUDIOA - I2S audio bus triggering and analysis option



$410

CAN-FD / LIN Decode

MHO2000-AUTOA

MHO2000-AUTOA - CAN-FD, LIN bus triggering and decoding option



$410

FlexRay Decode

MHO2000-FLEXA

MHO2000-FLEXA - FlexRay triggering and decoding option



$410

Power Analysis

MHO2000-PWRA

MHO2000-PWRA - Power analysis option



$410

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$26

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$27

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe



$1,095

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe



$1,369

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$2,178

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$2,137

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$1,188

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$4,669

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$6,725

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$5,935

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$7,521

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$718

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,422

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$648

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$1,080

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$333
