DHO1000 Series   |  HIGH RESOLUTION DIGITAL OSCILLOSCOPES

DHO1000
The DHO1000 Series provides improved signal integrity and value with our latest oscilloscope technology. Our UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4 channel oscilloscopes have our best signal visualization capabilities. Combine 50-100 Million points of memory, our new Ultra Acquire burst capture mode, and precision measurements for incredible signal fidelity value. The DHO1000 Series is a powerful entry level solution for engineers looking for next generation signal quality and value.

Save 15% on DHO1000 Series Oscilloscopes and up to 50% on Options between 1 July - 30 September

DHO1000 Datasheet & Specs
Product Feature Customer Benefit
12 Bit Resolution 16x improvement in quantization uncertainty

RIGOL’s latest Oscilloscope technology includes a new custom chipset design enabling sampling with true 12 bit resolution. This reduces the quantization level between bits by a factor of 16. These high resolution samples improve signal fidelity and analysis capabilities for signals from power to communications.
Low Noise New ASIC chipset with dramatically lower front end noise
New ASIC chipset with dramatically lower front end noise

Make the most of 12 bit analog to digital converters with a significantly lower noise floor. With the noise reduced by a factor of 5 compared to our UltraVision II Oscilloscopes analyze smaller signal artifacts with a combination of speed and accuracy.
Ultra Acquire Burst Capture Visualize dynamic signals with multiple display modes
Visualize dynamic signals with multiple display modes

Capture and visualize events at up to an equivalent rate of 1.5 million waveforms per second. Set your frame number to capture and visualize using a density, waterfall, perspective, or mosaic display. Utilize UltraAcquire to capture small, dynamic changes within a complex signal.
Useful Long Memory Record, navigate, and analyze with flexible memory

With up to 100 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode. Work with the deep memory using precision measurements for complete signal analysis.

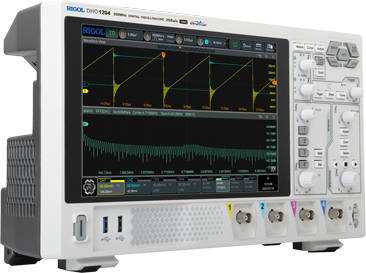

Product View

DHO1000
Whitepapers
App Note - Advanced Embedded DebugWaveform Visualization with High Resolution Oscilloscopes
Purchasing Info
Buy Now Request Quote Clearance Stock
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DHO1000 Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsVertical ResolutionBandwidthReal-time Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
DHO1072 2 12 Bit70 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $951
$808In Stock
DHO1074 4 12 Bit70 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $1,223
$1,039
DHO1102 2 12 Bit100 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $1,223
$1,039In Stock
DHO1104 4 12 Bit100 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $1,495
$1,270
DHO1202 2 12 Bit200 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $1,495
$1,270In Stock
DHO1204 4 12 Bit200 MHz2 GSa/s50 Mpts(100M opt)50000 wfms/s $1,767
$1,502
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

icon DHO1000-DHO4000 (Software) Update - 02.12

Software

icon How do I install UltraSigma Compatible software?icon User's Guide for UltraSigma Softwareicon UltraSigma Instrument Connectivity Drivericon C#.NET basic instrument communication exampleicon How do I install UltraSigma?icon Rigol Software Installation and Usage guide
Please scroll to the sides when using small displays

Deep Memory

DHO1000-RLU-01

DHO1000 Series Deep Memory Upgrade License to 100 MPts memory

$203
$172

Please scroll to the sides when using small displays

Power Cord

Probes - 1 per channel

PVP2350 for 200 MHz (350 MHz Passive Probe with 1x:10x selector); PVP3150 (150 MHz 1x:10x passive probe) for other models

USB Cable

Calibration Certificate

Please scroll to the sides when using small displays

Deep Memory

DHO1000-RLU-01

DHO1000 Series Deep Memory Upgrade License to 100 MPts memory

$203
$172

Bandwidth Upgrade

DHO1000-BWU10T20

DHO1102 & DHO1104 Bandwidth Upgrade License from 100 MHz to 200 MHz

(Option only works with DHO1102 and DH1104)

$408
$347

Bandwidth Upgrade

DHO1000-BWU7T10

DHO1072 & DHO1074 Bandwidth Upgrade License from 70 MHz to 100 MHz

(Option only works with DHO1072 and DH1074)

$408
$347

Bandwidth Upgrade

DHO1000-BWU7T20

DHO1072 & DHO1074 Bandwidth Upgrade License from 70 MHz to 200 MHz

(Option only works with DHO1072 and DH1074)

$680
$578

Please scroll to the sides when using small displays

Current Probe

RP1002C
Current Probe, DC-1 MHz,70A peak

$2,454

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators

$26

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)

$27

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe

$1,095

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe

$1,369

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe



$2,178

Optical-fiber Isolated Probe

PIA1050

500 MHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$21,508

Optical-fiber Isolated Probe

PIA1100

1 GHz optical isolation probe, standard with one 50x and one 2000x attenuator.

$32,331

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply

$2,137

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak

$1,188

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.

$4,669

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.

$6,725

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.

$5,935

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise

$7,521

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation

$718

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation

$1,422

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp

$1,080

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE

$333

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp

$648
