DHO/MHO5000 Series   |

DHO/MHO5000

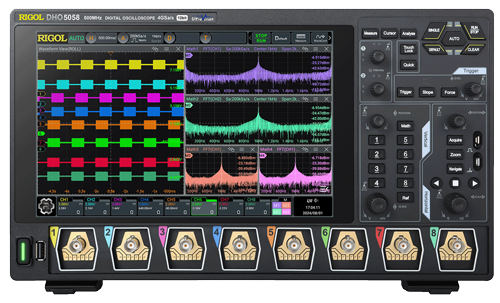

The DHO/MHO5000 series is a family of high-resolution digital oscilloscopes developed to meet the design, debugging, and test requirements of a wide range of applications. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, and excellent noise floor are ready to meet the high-accuracy needs of demanding measurement scenarios. The DHO/MHO5000 series digital oscilloscope has multiple models, include configurations supporting arbitrary function generation, digital signal analysis, Bode plot analysis, and other functions.
Product Feature Customer Benefit
12-bit Vertical Resolution With 12-bit vertical resolution and up to 4096 levels of quantization bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform.
Low Noise Make the most of 12 bit analog to digital converters with a significantly lower noise floor.
500 Mpts Memory Depth With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode.
High Channel Count Up to 8 analog input channels in a single instrument supports multi-channel test applications, such as power sequencing test, three-phase power analysis and motor test, third-generation semiconductor test, etc.
Multi-Instrument Capability Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis (MHO models).

Product View

DHO/MHO5000

Specs

Please scroll to the sides when using small displays
Model Analog ChannelsDigital ChannelsBandwidthMax Sample RateMax Memory DepthWaveform Capture Rate Price (CAD)
MHO5054 4 16 500 MHz4 GSa/s500 Mpts1,000,000 wfms/s $6,203
MHO5056 6 16 500 MHz4 GSa/s500 Mpts1,000,000 wfms/s $14,519
MHO5104 4 16 1 GHz4 GSa/s500 Mpts1,000,000 wfms/s $8,315
MHO5106 6 16 1 GHz4 GSa/s500 Mpts1,000,000 wfms/s $18,611
DHO5054 4 500 MHz4 GSa/s500 Mpts1,000,000 wfms/s $8,315
DHO5058 8 500 MHz4 GSa/s500 Mpts1,000,000 wfms/s $16,631
DHO5104 4 1 GHz4 GSa/s500 Mpts1,000,000 wfms/s $10,427
DHO5108 8 1 GHz4 GSa/s500 Mpts1,000,000 wfms/s $20,723

 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

Options Bundle

DHO5000-BND
Bundle Option



$3,101

Options Bundle

MHO5000-BND
Bundle Option



$3,101

Waveform Generator Option

MHO5000-AWG

Built-in Dual-Channel 50 MHz Function Signal (4-CH MHO only)



$830

Logic Probe

PLA3204

Active Logic Analyzer Probe, 200 MHz (Type-C connector)



$236

Active Probe

PVA8150S

1.5 GHz active single-ended probe, input impedance 1 MΩ



$2,837

Please scroll to the sides when using small displays
Calibration Certificate

Power Cord

USB Cable

Please scroll to the sides when using small displays

Options Bundle

DHO5000-BND
Bundle Option



$3,101

Options Bundle

MHO5000-BND
Bundle Option



$3,101

Waveform Generator Option

MHO5000-AWG

Built-in Dual-Channel 50 MHz Function Signal (4-CH MHO only)



$830

Aerospace Serial Decode

DHO5000-AEROA
MIL-STD-1553 Bus Trigger and Decoding Option



$1,028

Audio Serial Decode

DHO5000-AUDIOA
I2S Audio Bus Trigger and Analysis Option



$1,028

Auto Serial Decode

DHO5000-AUTOA
CAN/CAN-FD, LIN Bus Trigger and Decoding Option



$1,028

FlexRay Decoding

DHO5000-FlexA
FlexRay Trigger and Decoding Option



$1,028

Power Analysis

DHO5000-PWRA
Power Analysis Option



$1,028

Bandwidth Upgrade

DHO5004-BWU05T10
500 MHz to 1 GHz Bandwidth Upgrade Option (4-CH DHO)



$2,480

Bandwidth Upgrade

DHO5008-BWU05T10
500 MHz to 1 GHz Bandwidth Upgrade Option (8-CH DHO)



$4,764

Aerospace Serial Decode

MHO5000-AEROA
MIL-STD-1553 Bus Trigger and Decoding Option



$1,028

Audio Serial Decode

MHO5000-AUDIOA
I2S Audio Bus Trigger and Analysis Option



$1,028

Auto Serial Decode

MHO5000-AUTOA
CAN/CAN-FD, LIN Bus Trigger and Decoding Option



$1,028

FlexRay Decoding

MHO5000-FlexA
FlexRay Trigger and Decoding Option



$1,028

Power Analysis

MHO5000-PWRA
Power Analysis Option



$1,028

Bandwidth Upgrade

MHO5004-BWU05T10
500 MHz to 1 GHz Bandwidth Upgrade Option (4-CH MHO)



$2,480

Bandwidth Upgrade

MHO5006-BWU05T10
500 MHz to 1 GHz Bandwidth Upgrade Option (6-CH MHO)



$4,764

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Logic Probe

PLA3204

Active Logic Analyzer Probe, 200 MHz (Type-C connector)



$236

Active Probe

PVA8150S

1.5 GHz active single-ended probe, input impedance 1 MΩ



$2,837

Optical-fiber Isolated Probe

PIA1020

200 MHz optical isolation probe, standard with one 20x attenuator.



$12,407

Optical-fiber Isolated Probe

PIA1050

500 MHz optical isolation probe, standard with one 50x and one 2000x attenuator.



$20,723

Optical-fiber Isolated Probe

PIA1100

1 GHz optical isolation probe, standard with one 50x and one 2000x attenuator.



$31,151

50 Ohm Adaptor

ADP0150BNC
50 Ohm impedance adapter for oscilloscopes or generators



$26

BNC Cable

CB-BNC-BNC-MM-100
BNC Cable (length 1 meter)



$27

Differential Probe

PHA0150

70 MHz 1500 V Differential Voltage Probe




$1,055

Differential Probe

PHA1150

100 MHz 1500 V Differential Voltage Probe




$1,319

Differential Probe

PHA2150

200 MHz 1500 V Differential Voltage Probe





$2,099

Current Probe Power

RP1000P
RP1003C/RP1004C/RP1005C probe power supply



$2,060

Current Probe

RP1001C
Current Probe, DC-300 kHz,100 Apeak



$1,145

Current Probe

RP1003C
Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply.



$4,499

Current Probe

RP1004C
Current Probe, DC-100 MHz,50 A peak. Requires RP1000P power supply.



$6,480

Current Probe

RP1005C
Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.



$5,719

Current Probe

RP1006C

Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise



$7,247

High Voltage Probe

RP1010H
High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation



$692

High Voltage Probe

RP1018H
High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation



$1,371

Differential Probe

RP1025D
High Voltage Differential Probe, DC-25 MHz, 1400 Vpp



$625

Differential Probe

RP1100D
High Voltage Differential Probe, DC-100 MHz, 7000 Vpp



$1,041

High Voltage Probe

RP1300H
100:1 300 MHz TO 2KV PASSIVE PROBE



$321
