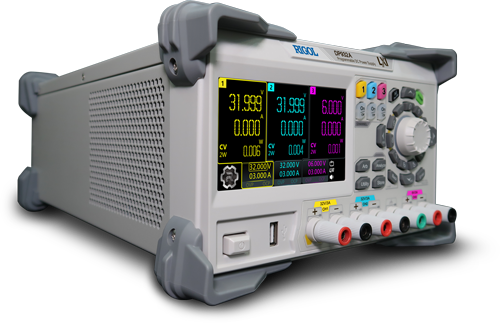

DP900 Series   |  HIGH PERFORMANCE LINEAR DC POWER SUPPLIES

DP900
The DP900 Series Power Supplies combine our new touch screen interface with new flexibility and higher speed functions designed for benchtop DC power analysis. The DP932A and DP932U are 3 channel completely isolated benchtop power supplies. Activate the high-speed arb function that allows you to update the power supply output at up to 10 times per second while quickly creating a repeating shape or pattern from the front panel. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. The DP932A comes with all the capabilities enabled. The DP932U has optional resolution, digital IO, and arbitrary speed upgrades. The DP932U also comes with safety banana plugs in place of the binding posts on the DP932A. This combination of flexibility and capability makes the DP900 an important addition to any engineer’s bench.
DP900 Datasheet & Specs
Product Feature Customer Benefit
  Automatic Series & Parallel Connections Simplified wiring and connections for fast and easy setup
Simplified wiring and connections for fast and easy setup

Channels 1 & 2 can be internally connected via the utility menu either in parallel or series. This allows engineers to get voltage or current from both channels with only a connection to the channel 1 terminals. With all 3 fully isolated channels it is easy to configure the instrument for your application.
  Analysis Analyze dynamic power environments for emulation and verification
Analyze dynamic power environments for emulation and verification

Collect and analyze critical details about your device operation with graphical sampling on the front panel display. Capture and graph voltage, current, and/or power from any of the channels.
  High Speed Arb Mode Emulate dynamic power signals for reliability and robustness testing
Emulate dynamic power signals for reliability and robustness testing

With high-speed arbitrary mode, engineers can create a function or waveform of up to 512 points with a minimum dwell time as low as 1 millisecond. Create sine waves, pulses, ramps, or custom shapes to output on the power supply channel in either voltage or current. Set up the waveform to repeat or trigger using the digital IO or bus communication. Combine high speed arb mode and sampling for complete analysis of a test device’s power performance.

Product View

DP900

IoT Video Series

Interested in Debugging Connected Electronics? Register and explore our IoT Video Series.

IoT Videos
Whitepapers
Debug & Analysis of IoT Power Requirements
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DP900 Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model ChannelsTotal PowerMax VoltageMax Current Price (CAD)
DP932U 3 channel(s)210 Watts64 Volts6 Amps $719
$630
DP932A 3 channel(s)210 Watts64 Volts6 Amps $989 In Stock
DP932E 3 channel(s)198 Watts60 Volts6 Amps
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

 DP900_DP2000 (Software)Update(Normal)

Drivers

Software

 UltraSigma Instrument Connectivity Driver How do I install UltraSigma Compatible software? User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

High Resolution

DP900-HIRES

DP900 Series High Resolution Option (for DP932E and DP932U)



$158

Output Shape

DP900-ARB

DP900 Series Arbitrary function option with the minimum dwell time of 100 ms (for DP932U only)



$158

DIgital IO

DP900-DIGITALIO

DP900 Series Digital IO function option (for DP932U only)



$158

Please scroll to the sides when using small displays
Power Cord

Spare Fuse

Two pairs of 10 A testing cables

USB Cable

Please scroll to the sides when using small displays

High Resolution

DP900-HIRES

DP900 Series High Resolution Option (for DP932E and DP932U)



$158

Output Shape

DP900-ARB

DP900 Series Arbitrary function option with the minimum dwell time of 100 ms (for DP932U only)



$158

DIgital IO

DP900-DIGITALIO

DP900 Series Digital IO function option (for DP932U only)



$158

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Cable

10A-Testing-Cable

10 A testing cable for DP Series



$33

Rack Mount Kit

RM-1-DP800

Rack Mounting Kit for quantity 1 DP800 Power Supplies or 1 DL3000 Load. May be different than image. Rack kits are different for each instrument.



$181

Rack Mount Kit

RM-2-DP800

Rack Mounting Kit for quantity 2 DP800 Power Supplies or 2 DL3000 Loads. May be different than image. Rack kits are different for each instrument.



$162
