DP800 Series   |

High Performance Linear DC Power Supplies

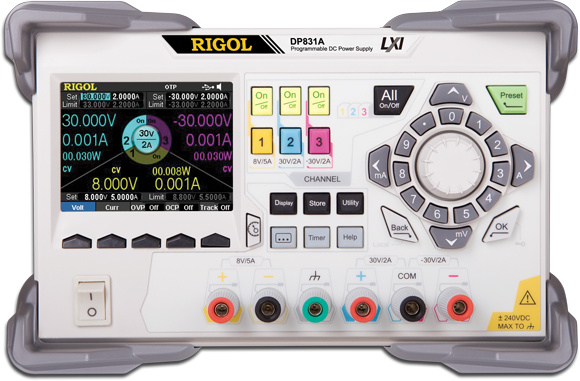

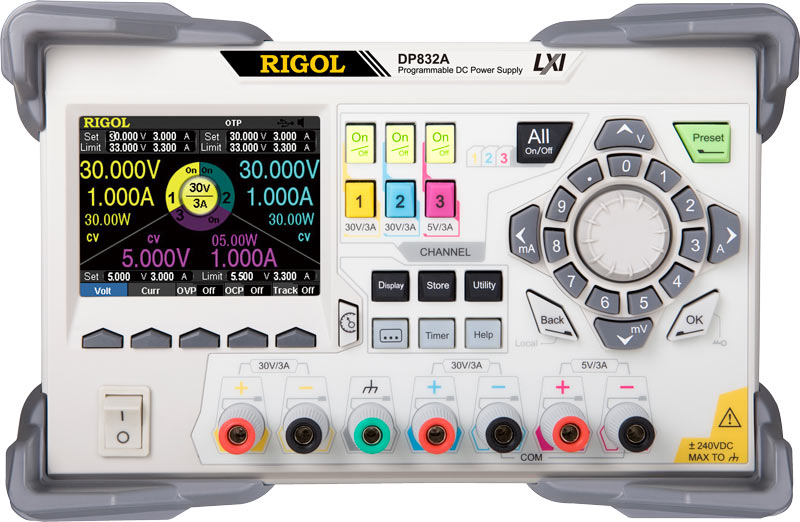

DP800
The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time on a powerful platform. The DP800 Series is a family of linear power supplies systems with 1, 2, or 3 outputs and 140 to 200 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features in the advanced "A" models means there are even more ways to use the instruments. Digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application. Select the value models for best price performance or upgrade to the "A" model to improve resolution and add advanced monitoring, triggering, and programming capabilities.
Product Feature Customer Benefit
Low ripple and noise: <350 μVrms/3 mVpp; <2 mArms Less noise delivered to your device means easier environment for testing and debugging functions and PreCompliance
Fast transient response time: <50 us Fast analog edges introduces fewer variables into your testing during startup and shutdown procedures
OVP/OCP/OTP protection Protect your investment in your devices with fast acting protection for unwanted voltage and current conditions
Built in V, A, W measurements Live front panel feedback of voltage, current, and power means more confidence as you are running tests. Data available for analysis of issues that need another look

Product Details

DP800 with Callouts

Specs

Please scroll to the sides when using small displays
Model ChannelsTotal PowerMax VoltageMax Current Price (CAD)
DP831 3 channel(s)160 Watts30 Volts5 Amps $625 In Stock
DP832 3 channel(s)195 Watts30 Volts3 Amps $624 In Stock
DP811 1 channel(s)200 Watts40 Volts10 Amps $814 In Stock
DP821 2 channel(s)140 Watts60 Volts10 Amps $814 In Stock
DP813 1 channel(s)200 Watts20 Volts20 Amps $870 In Stock
DP822 2 channel(s)180 Watts20 Volts16 Amps $910 In Stock
DP831A 3 channel(s)160 Watts30 Volts5 Amps $876 In Stock
DP832A 3 channel(s)195 Watts30 Volts3 Amps $887 In Stock
DP821A 2 channel(s)140 Watts60 Volts10 Amps $965 In Stock
DP811A 1 channel(s)200 Watts40 Volts10 Amps $1,010 In Stock
DP813A 1 channel(s)200 Watts20 Volts20 Amps $1,068 In Stock
DP822A 2 channel(s)180 Watts20 Volts16 Amps $1,095 In Stock

 Compare Product Families

Specifications:

 DP800A Specs

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

Please scroll to the sides when using small displays

High Resolution

HIRES-DP800
1mV/1mA Resolution Option for DP800 Family



$143

Serial & LAN Communication

INTERFACE-DP800
RS-232 and LAN interface option for DP800 Family



$185

Please scroll to the sides when using small displays
Spare Fuses

USB Cable

Please scroll to the sides when using small displays

High Resolution

HIRES-DP800
1mV/1mA Resolution Option for DP800 Family



$143

Serial & LAN Communication

INTERFACE-DP800
RS-232 and LAN interface option for DP800 Family



$185

Detect & Analyze

AFK-DP800
Detect and Analyzer option for DP800 Family



$143

Digital I/O

DIGITALIO-DP800
Four channels for trigger in & out option for the DP800 Family



$143

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Cable

10A-Testing-Cable

10 A testing cable for DP Series



$33

Rack Mount Kit

RM-1-DP800

Rack Mounting Kit for quantity 1 DP800 Power Supplies or 1 DL3000 Load. May be different than image. Rack kits are different for each instrument.



$181

Rack Mount Kit

RM-2-DP800

Rack Mounting Kit for quantity 2 DP800 Power Supplies or 2 DL3000 Loads. May be different than image. Rack kits are different for each instrument.



$162
