DP2000 Series   |  HIGH PERFORMANCE LINEAR DC POWER SUPPLIES

DP2000
The DP2000 Series Power Supplies combine new high speed and high accuracy technology to provide a flexible test and analysis instrument for all of your DC power applications. The DP2031 is a 3 channel power supply with new capabilities that expand its value. First, the DP2031 comes with a low current measurement range that makes microamp measurements possible with 28 microamp accuracy and 1 microamp resolution. Combine that with the high-speed arb function that allows you to update the power supply output at up to 1000 times per second and you can quickly emulate battery configuration tests for all of your IoT and portable electronics. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. This combination of flexibility and capability makes the DP2000 an important addition to any engineer’s bench.
DP2000 Datasheet & Specs
Product Feature Customer Benefit
  Automatic Series & Parallel Connections Simplified wiring and connections for fast and easy setup
Simplified wiring and connections for fast and easy setup

Channels 1 & 2 can be internally connected via the utility menu either in parallel or series. This allows engineers to get voltage or current from both channels with only a connection to the channel 1 terminals. With all 3 fully isolated channels it is easy to configure the instrument for your application.
  Low Current Analysis Unmatched Resolution for critical measurements
Unmatched Resolution for critical measurements

Modern portable electronics including IoT devices use low level currents that are difficult to emulate or analyze with traditional power supplies. The DP2000 makes measurements down to microamp levels with 30 microamp accuracy. The DP2000 also has the ability to autorange between the microamp and milliamp ranges making it a flexible solution for dynamic applications. Collect and analyze critical details about your device operation with high speed and low current capabilities.
  High Speed Arb Mode Emulate dynamic power signals for reliability and robustness testing
Emulate dynamic power signals for reliability and robustness testing

With high-speed arbitrary mode, engineers can create a function or waveform of up to 512 points with a minimum dwell time as low as 1 millisecond. Create sine waves, pulses, ramps, or custom shapes to output on the power supply channel in either voltage or current. Set up the waveform to repeat or trigger using the digital IO or bus communication. Combine high speed arb mode and sampling for complete analysis of a test device’s power performance.

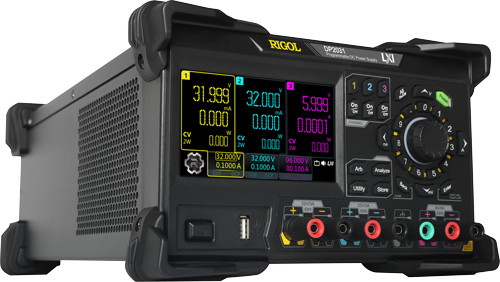

Product View

DP2000

IoT Video Series

Interested in Debugging Connected Electronics? Register and explore our IoT Video Series.

IoT Videos
Whitepapers
Debug & Analysis of IoT Power Requirements
Purchasing Info
Buy Now Request Quote
Technical Support

Search our Support Library

Look through our library of FAQs or ask a question on our support site.

 Contact Tech Support

Need Help Now?

Call 800.617.3413

Read about our 3 Year Warranty
Product Info
 DP2000 Datasheet & Specs   Firmware

Specs

Please scroll to the sides when using small displays
Model ChannelsTotal PowerMax VoltageMax Current Price (CAD)
DP2031 3 channel(s)222 Watts64 Volts10 Amps $1,511
 Compare Product Families

To get started using your instruments over the bus download UltraSigma instrument communication software or for older instruments or customized installations review the How to Guide:
Using VISA and drivers to communicate with instruments

For help writing your own programs for our instruments review the programming manual or contact us directly.

Firmware

Drivers

Software

 UltraSigma Instrument Connectivity Driver How do I install UltraSigma Compatible software? User's Guide for UltraSigma Software
Please scroll to the sides when using small displays

High Current

DP2000-10A

CH3 10 A high range mode



$251

Fast Sampling

DP2000-HADC

7.5 k/s high-speed sampling option



$251

Please scroll to the sides when using small displays
Power Cord

Spare Fuse

Two pairs of 10 A testing cables

USB Cable

Please scroll to the sides when using small displays

High Current

DP2000-10A

CH3 10 A high range mode



$251

Fast Sampling

DP2000-HADC

7.5 k/s high-speed sampling option



$251

Please scroll to the sides when using small displays
Please scroll to the sides when using small displays

Cable

10A-Testing-Cable

10 A testing cable for DP Series



$125

GPIB Bus

DP2000-GPIB

GPIB user installable interface module



$251

Rack Mount Kit

RM-1-DP800

Rack Mounting Kit for quantity 1 DP800 Power Supplies or 1 DL3000 Load. May be different than image. Rack kits are different for each instrument.



$173

Rack Mount Kit

RM-2-DP800

Rack Mounting Kit for quantity 2 DP800 Power Supplies or 2 DL3000 Loads. May be different than image. Rack kits are different for each instrument.



$154
