Introducing

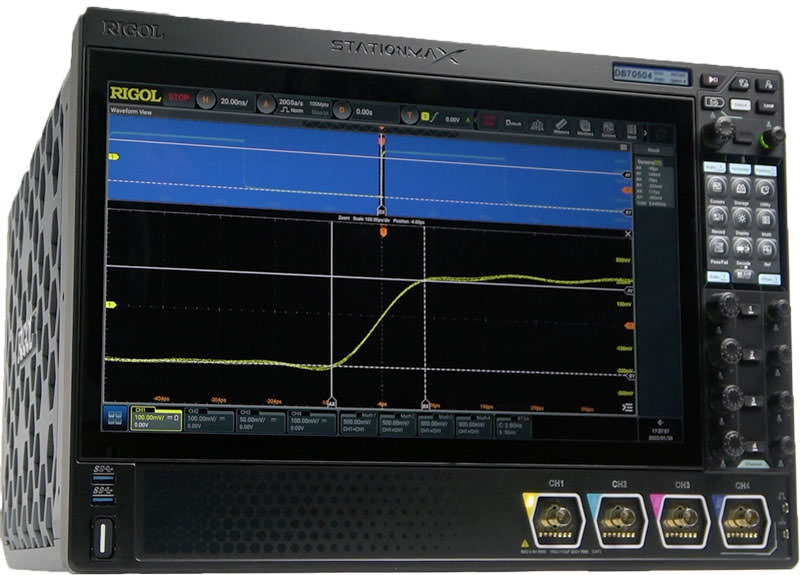

RIGOL's Most Powerful Oscilloscope Ever

Digital Oscilloscope with Real-Time Spectrum Analysis to 5 GHz

New
Promotions

DS70304 15% off MSRP+ 50% off PVA8350 with the purchase of this scope.

DS70504 15% off MSRP+ 50% off PVA8700 with the purchase of this scope.

StationMax & UltraVision

A History of Innovation & Evolution

MSO5000

MSO8000

DS70000

Bandwidth

Sample Rate

Memory Depth

Waveform Capture Rate

DS70000 Series

Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz

Bandwidth

3 GHz / 5 GHz Models

Sample Rate

Maximum sample rate: 20 GSamples/sec

Memory Depth

Maximum memory depth: 2 Gpts

Waveform Capture Rate

1 Million Waveforms per second capture rate

High Resolution

8 bit ADCs with up to 16 bits in high-res mode

Up to 16 bit resolution
High resolution mode: 9-16 bits
Directly select the number of bits

Resolution		9 bits	10 bits	12 bits	14 bits	16 bits
Bandwidth	20 GSa/s	2000 MHz	1000 MHz	500 MHz	200 MHz	75 MHz
Bandwidth	10 GSa/s	1000 MHz	500 MHz	250 MHz	100 MHz	50 MHz

Intuitive Setup

Acquisition menu allows engineer to set the resolution directly and get instantaneous feedback on the available bandwidth

Analysis Capability

Leveraging Technology to Enhance Analysis

Real-Time Spectrum Analysis

Wideband, real-time RF signal capture

EMI Debugging and Multi-Domain Analysis

Debug time correlated RF and high-speed analog signals

Eye Diagram Analysis

High speed serial data visualization and characterization

Jitter Analysis

Evaluate changes in clock frequency that affect signal fidelity

Serial Bus Decoding and Compliance

Decode messages and verify common buses against published standards

Real-Time Spectrum Analysis

Eye Diagram Analysis

Jitter Analysis

Serial Bus Analysis

Usability

Innovation from Probe to Display

HD Wide Format Touchscreen

15.6" electronic tilt display

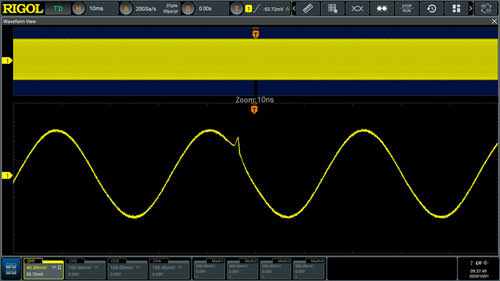

Multi-window display

Multiple measurement functions open in separate windows

Intuitive Setup

Customizable display and reimagined interface

Precise Probing

Next gen mechanical and electrical design

Data Availability

Communicate, Control, and Access with Ease

Next Gen Digital Hardware

Powerful processor combined with high-speed interfaces

Complete Web Control

Interact, record, and program directly from the web

FTP Data Access

Save, move, and archive large data set for offline analysis

Fast Storage

Transfer gigabits of data while minimizing instrument downtime

Compare & Save

DS70000 Oscilloscopes deliver new levels of performance and capability to address demanding design challenges

Compare vs TEK, Keysight, and Rohde & Schwarz

Competitive Comparison - Scopes

Brand	RIGOL		KEYSIGHT		Tektronix	LeCroy	R & S
Family	MSO8000	DS70000	DSOX6004A	MXR	MSO64B	WavePro HD	RTO6
Maximum bandwidth	0.6-2GHz	3~5GHz	1~6GHz	500MHz~6GHz	1~8GHz	2.5 – 8 GHz	600MHz
Maximum sample rate	10 GSa/s	20 GSa/s	20 GSa/s	16 GSa/s	50 GSa/s	20 GSa/s	10 / 20 GSa/s⁴
Refresh rate	600 kwfms/s	1,000 kwfms/s	450 kwfms/s	200 kwfms/s	500 kwfms/s³	1,000 kwfms/s	1,000 kwfms/s¹
Maximum Memory depth	500 Mpts	2 Gpts	4 Mpts	400 Mpts	1 Gpts	500 Mpts²	2 Gpts
Vertical resolution	8-bit HR 12-bit	8-bit HD to 16-bit	8-bit HD to 12-bit	10-bit HD to 16-bit	12-bit HD to 16-bit	12-bit HD to 15-bit	8-bit HD to 16-bit
RTSA/FFT	Enhanced FFT	RTSA Enhanced FFT	Enhanced FFT	RTSA Enhanced FFT	Enhanced FFT	Enhanced FFT	Enhanced FFT

Notes:
1 - R & S RTO6 has a 'ultra-segmented mode' that can capture 2.5 Mwaves/sec without interruption due to visualization
2 - Lecroy WavePro has a 5 Gpt option, but the maximum analysis memory is 500 Mpts / channel
3 - Tek MSO6B has FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
4 - R & S RTO6 4 and 6 GHz models have 20 GSa/sec, other models max out at 10.

Competitive Comparison - Probes

Brand	RIGOL	Tektronix	Keysight		RIGOL	Tektronix		Keysight
Model number	PVA8350	TDP3500	1131B	N2751A	PVA8700	P7506	P7508	1134B	N2752A
Bandwidth GHz	3.5	3.5	3.5	3.5	7	6	8	7	6
Input impedance	50 kΩ / ≤ 0.6pF	100 kΩ / ≤ 0.3 pF	50 kΩ	200 kΩ	50 kΩ / ≤ 0.6pF	100 kΩ	150 kΩ / 0.4 pF	50 kΩ	200 kΩ
Attenuation	10X	5x	10X	2X/10X	10X	5X/12.5X	4X / 10X	10X	2X/10X
Maximum voltage	±10 V	±15 V	5 Vpp	10 Vpp	±10 V	±15 V	±12 V	5 Vpp	10 Vpp
Bias voltage	±6.25 V		±12 V	±15 V	±6.25 V	5.2 V	5.2 V	±12 V	±15 V
Noise mVrms	3	2.1	3	2.5	3	2.6	3	3	2.5
CMRR	40 dB	60 dB		60 dB	40 dB	60 dB	60 dB		60 dB

StationMax Oscilloscope & Probe Models

DS70304
3 GHz Scope

PVA8350
3.5 GHz active probe

DS70504
5 GHz Scope

PVA8700
7 GHz active probe

DS70304
3 GHz Scope

PVA8350
3.5 GHz active probe

DS70504
5 GHz Scope

PVA8700
7 GHz active probe

RIGOL's most powerful scope ever improves upon all of our analysis capabilities

Request a Quote

DS70000 Series Documentation

DS70000 Datasheet

DS70000 Quick Guide

DS70000 User Guide

DS70000 Programming Guide

DS70000 Performance Verification Guide

Open Source Acknowledgement
